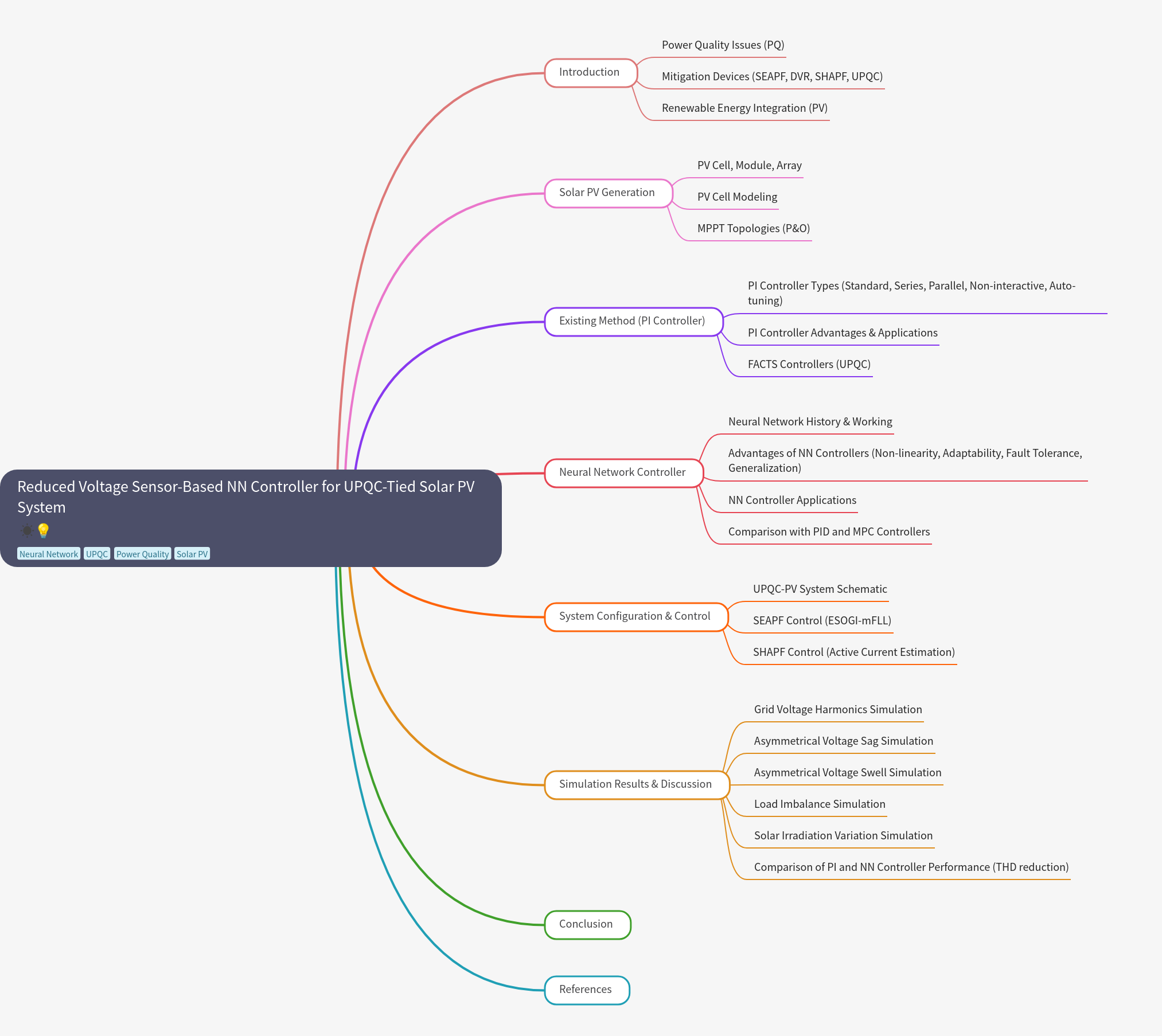

Featured Mind Map

NN Controller for Solar PV UPQC Systems

A reduced voltage sensor-based Neural Network (NN) controller optimizes Unified Power Quality Conditioner (UPQC) performance in solar photovoltaic (PV) systems. This innovative approach enhances power quality by mitigating issues like harmonics and voltage sags/swells, ensuring stable and efficient renewable energy integration. It leverages NN adaptability for improved control without extensive sensing requirements.

Key Takeaways

1

NN controllers improve power quality in solar PV systems.

2

UPQC devices effectively mitigate grid disturbances and harmonics.

3

Reduced voltage sensors simplify control, maintaining system efficiency.

4

Solar PV integration requires robust power quality mitigation strategies.

5

Simulation confirms NN controller superiority over traditional PI methods.

NN Controller for Solar PV UPQC Systems

What are the key challenges in power quality for renewable energy systems?

Integrating renewable energy sources like solar photovoltaic (PV) systems into the grid introduces significant power quality issues, including voltage fluctuations, harmonics, and sags. These disturbances can compromise grid stability and the performance of connected loads. To address these challenges, various mitigation devices, such as Unified Power Quality Conditioners (UPQC), are employed. UPQC devices combine series and shunt active power filters to simultaneously compensate for voltage and current disturbances, ensuring a stable and reliable power supply from renewable sources. Effective power quality management is crucial for the widespread adoption and reliable operation of solar PV systems.

  • Power Quality Issues (PQ) like harmonics and voltage sags.
  • Mitigation Devices (SEAPF, DVR, SHAPF, UPQC) are used.
  • Renewable Energy Integration (PV) necessitates robust solutions.

How does solar photovoltaic (PV) generation work and what are its components?

Solar photovoltaic (PV) generation converts sunlight directly into electricity using semiconductor materials. The fundamental unit is the PV cell, which generates a small voltage. Multiple cells are connected to form a PV module, and several modules are combined into a PV array to achieve desired power output. Accurate PV cell modeling is essential for predicting performance and designing efficient systems. Maximum Power Point Tracking (MPPT) topologies, such as Perturb and Observe (P&O), are crucial for extracting the maximum possible power from the PV array under varying environmental conditions, optimizing energy yield and system efficiency.

  • PV Cell, Module, and Array form the system.
  • PV Cell Modeling is vital for performance prediction.
  • MPPT Topologies (P&O) maximize power extraction.

What are the characteristics and applications of traditional PI controllers in power systems?

Proportional-Integral (PI) controllers are widely used in power systems for their simplicity and effectiveness in regulating various parameters. They come in several types, including standard, series, parallel, non-interactive, and auto-tuning configurations, each suited for specific control requirements. PI controllers offer advantages such as ease of implementation and good steady-state error reduction. They are commonly applied in areas like voltage regulation, current control, and frequency stabilization. In the context of Flexible AC Transmission Systems (FACTS) controllers, such as the Unified Power Quality Conditioner (UPQC), PI controllers often form the backbone of control loops, managing power flow and mitigating disturbances.

  • PI Controller Types include standard, series, and auto-tuning.
  • PI Controller Advantages & Applications are widespread.
  • FACTS Controllers, like UPQC, often utilize PI control.

Why are Neural Network controllers advantageous for complex power system applications?

Neural Network (NN) controllers offer significant advantages over traditional control methods, particularly in complex and dynamic power system applications. NNs are inspired by the human brain's structure, enabling them to learn complex non-linear relationships and adapt to changing system conditions. Their inherent adaptability allows them to maintain performance even with system variations or uncertainties. NNs also exhibit fault tolerance, meaning they can continue to function effectively even if some components fail. Their generalization capability allows them to perform well on unseen data, making them robust for diverse operating scenarios. Compared to PID and Model Predictive Controllers (MPC), NNs can handle highly non-linear systems more effectively.

  • Neural Network History & Working involves learning from data.
  • Advantages of NN Controllers include non-linearity and adaptability.
  • NN Controller Applications span various complex systems.
  • Comparison with PID and MPC Controllers highlights NN strengths.

How is the UPQC-PV system configured and what are its control mechanisms?

The Unified Power Quality Conditioner (UPQC) integrated with a Solar PV system forms a comprehensive solution for power quality enhancement. The UPQC-PV System Schematic typically includes a series active power filter (SEAPF) and a shunt active power filter (SHAPF), connected to the grid and the PV array. The SEAPF is responsible for voltage quality improvement, while the SHAPF handles current quality and power factor correction. Control strategies are critical for their operation. SEAPF control often utilizes techniques like ESOGI-mFLL (Enhanced Second Order Generalized Integrator-based multi-frequency Locked Loop), while SHAPF control commonly employs active current estimation methods to accurately compensate for disturbances and ensure stable power delivery.

  • UPQC-PV System Schematic integrates series and shunt filters.
  • SEAPF Control uses advanced techniques like ESOGI-mFLL.
  • SHAPF Control relies on Active Current Estimation.

What do simulation results reveal about the performance of the NN controller in a UPQC-PV system?

Simulation results provide crucial insights into the effectiveness of the reduced voltage sensor-based Neural Network (NN) controller within a UPQC-Tied Solar PV System. Various scenarios are simulated to assess performance under different grid disturbances. These include Grid Voltage Harmonics Simulation, Asymmetrical Voltage Sag Simulation, Asymmetrical Voltage Swell Simulation, and Load Imbalance Simulation. Additionally, the system's response to Solar Irradiation Variation Simulation is evaluated to confirm its robustness under changing environmental conditions. A key finding is the Comparison of PI and NN Controller Performance, consistently demonstrating superior Total Harmonic Distortion (THD) reduction and faster response times with the NN controller, validating its enhanced power quality mitigation capabilities.

  • Grid Voltage Harmonics Simulation shows NN effectiveness.
  • Asymmetrical Voltage Sag Simulation demonstrates robust compensation.
  • Asymmetrical Voltage Swell Simulation confirms stability.
  • Load Imbalance Simulation highlights system adaptability.
  • Solar Irradiation Variation Simulation proves resilience.
  • Comparison of PI and NN Controller Performance shows better THD reduction.

What are the main conclusions regarding the reduced voltage sensor-based NN controller for UPQC-Tied Solar PV Systems?

The research concludes that a reduced voltage sensor-based Neural Network (NN) controller significantly enhances the performance of Unified Power Quality Conditioners (UPQC) in solar photovoltaic (PV) systems. This innovative control strategy effectively mitigates various power quality issues, including harmonics, voltage sags, and swells, while minimizing the need for extensive voltage sensing. The NN controller demonstrates superior adaptability and robustness compared to traditional methods, ensuring stable and efficient integration of solar energy into the grid. Its implementation leads to improved power quality and overall system reliability, making it a promising solution for modern power grids.

Where can one find further information on this research topic?

For those seeking deeper understanding and detailed technical specifications regarding the reduced voltage sensor-based Neural Network controller for UPQC-Tied Solar PV Systems, consulting the provided references is highly recommended. These scholarly articles, research papers, and technical reports offer comprehensive insights into the methodologies, experimental setups, simulation models, and comparative analyses that underpin the findings presented. Engaging with these foundational texts allows for a thorough exploration of the theoretical frameworks and practical applications discussed, facilitating further study and research in this specialized field of power electronics and renewable energy integration.

Frequently Asked Questions

Q

What is a UPQC-Tied Solar PV System?

A

It's a solar photovoltaic system integrated with a Unified Power Quality Conditioner (UPQC). This setup enhances power quality by mitigating voltage and current disturbances, ensuring stable and clean power from renewable sources.

Q

Why are power quality issues critical in renewable energy integration?

A

Renewable energy sources can introduce grid disturbances like harmonics and voltage fluctuations. Addressing these is critical to maintain grid stability, protect equipment, and ensure reliable power delivery from solar PV systems.

Q

How does a Neural Network controller improve power system stability?

A

Neural Network controllers learn complex non-linear relationships and adapt to changing conditions. This adaptability allows them to respond quickly and accurately to disturbances, improving system stability and power quality more effectively than traditional controllers.

Q

What is the role of reduced voltage sensors in this system?

A

Reduced voltage sensors simplify the system's hardware and potentially lower costs. The Neural Network controller's intelligence allows it to maintain high performance and accurate control even with fewer sensing inputs, optimizing efficiency.

Q

How does the NN controller compare to a PI controller in performance?

A

Simulations show the NN controller generally outperforms traditional PI controllers. It achieves better Total Harmonic Distortion (THD) reduction and faster response times, leading to superior power quality mitigation and system robustness.
