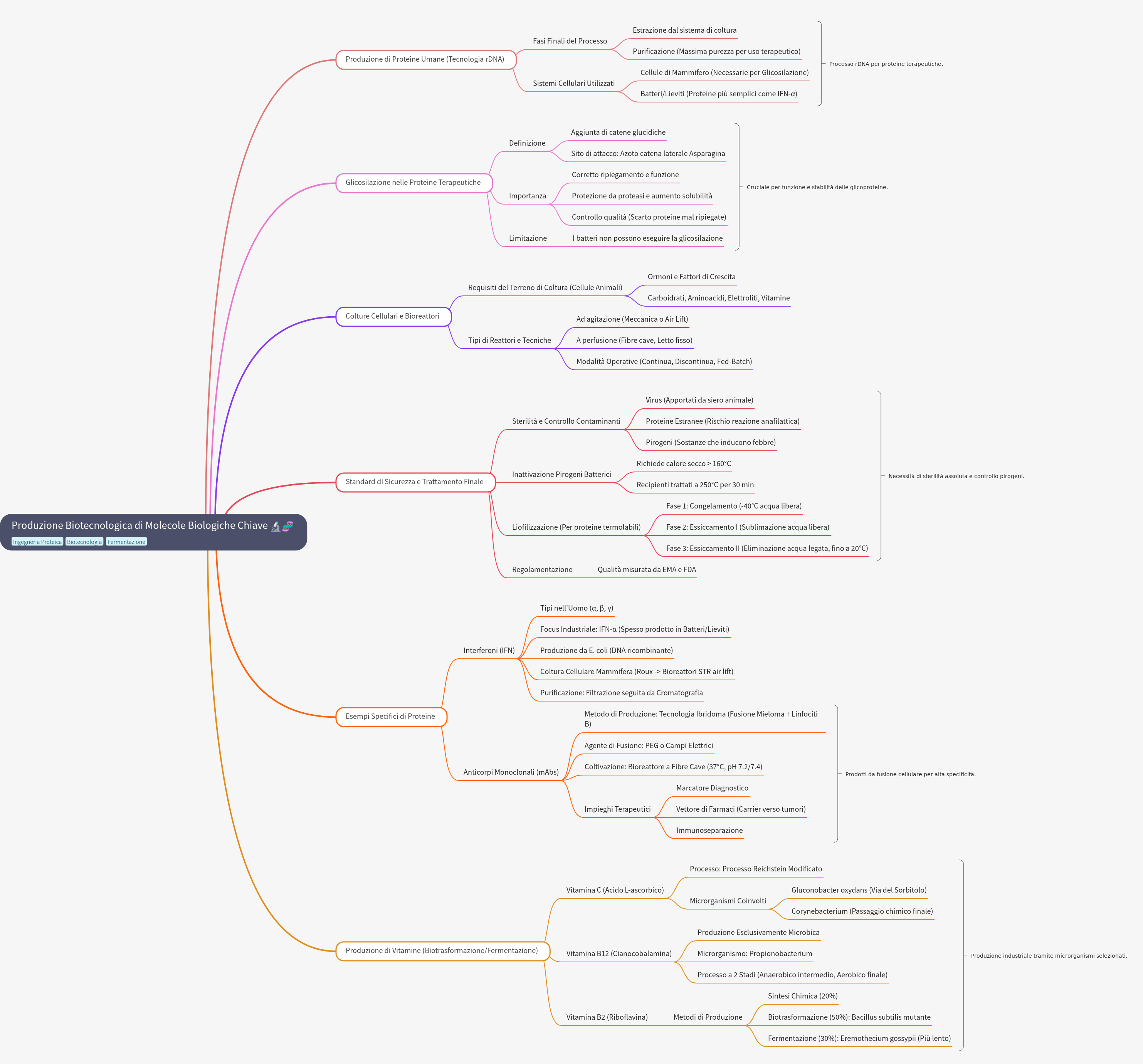

Biotechnological Production of Key Biological Molecules
The biotechnological production of key biological molecules involves using genetically engineered organisms and controlled cell culture systems, such as bioreactors, to synthesize complex therapeutic proteins, like human proteins via rDNA technology, and essential vitamins through fermentation. This process requires stringent purification, glycosylation control, and adherence to high safety standards to ensure efficacy and patient safety.
Key Takeaways
rDNA technology utilizes various cell systems (mammalian, bacteria, yeast) for protein synthesis.
Glycosylation is crucial for protein function, stability, and quality control in therapeutics.
Bioreactors and specialized media are essential for large-scale, controlled cell culture.
Final products must meet strict safety standards, including sterility and pyrogen inactivation.
Vitamins are produced industrially using biotransformation or microbial fermentation processes.
How are human proteins produced using Recombinant DNA (rDNA) technology?
Recombinant DNA technology is the primary method for producing therapeutic human proteins, involving the insertion of a human gene into a host cell system, which then expresses the desired protein. The choice of host system—mammalian cells, bacteria, or yeast—depends heavily on the complexity of the protein, particularly the need for post-translational modifications like glycosylation. Once synthesized, the process concludes with crucial final stages focused on isolating and purifying the product to achieve the high purity levels required for therapeutic use, ensuring safety and efficacy and preparing the molecule for clinical application.
- Final Process Phase: Extraction from the culture system.
- Final Process Phase: Purification to maximum purity for therapeutic application.
- Cellular System Used: Mammalian cells, necessary for proper glycosylation.
- Cellular System Used: Bacteria/Yeast, suitable for simpler proteins like IFN-α.
Why is glycosylation important for the function of therapeutic proteins?
Glycosylation, the enzymatic addition of carbohydrate chains to a protein, is a critical post-translational modification that profoundly impacts the efficacy and stability of therapeutic glycoproteins. This process typically involves attaching sugar chains to the nitrogen atom of an Asparagine side chain. Proper glycosylation ensures the correct three-dimensional folding and function of the protein, while also protecting it from degradation by proteases and increasing its solubility. Furthermore, it serves as a quality control mechanism within the cell, ensuring that only correctly folded proteins proceed. However, a major limitation is that bacteria cannot perform this complex modification, necessitating the use of mammalian cell systems for many complex therapeutics.
- Definition: Addition of carbohydrate chains to the protein structure.
- Definition: Attachment site is the nitrogen side chain of Asparagine.
- Importance: Ensures correct folding and biological function.
- Importance: Provides protection from proteases and increases solubility.
- Importance: Acts as a quality control mechanism, discarding misfolded proteins.
- Limitation: Bacteria are unable to perform the glycosylation process.
What are the key requirements for cell cultures and how are bioreactors utilized?
Large-scale production of biological molecules relies on highly controlled cell cultures maintained within specialized bioreactors, which provide the optimal environment for cell growth and product synthesis. Animal cell cultures, often used for complex proteins, require a rich culture medium containing essential components such as hormones, growth factors, carbohydrates, amino acids, electrolytes, and vitamins to support cell viability and productivity. Bioreactors facilitate this process using various techniques, including agitated systems (mechanical or air lift) or perfusion systems (hollow fibers or fixed beds), operating in continuous, discontinuous, or fed-batch modes to optimize yield and maintain consistent environmental conditions like temperature and pH.
- Culture Medium Requirements (Animal Cells): Hormones and Growth Factors.
- Culture Medium Requirements (Animal Cells): Carbohydrates, Amino Acids, Electrolytes, and Vitamins.
- Reactor Types and Techniques: Agitated systems (Mechanical or Air Lift).
- Reactor Types and Techniques: Perfusion systems (Hollow Fibers, Fixed Bed).
- Operating Modes: Continuous, Discontinuous, and Fed-Batch.
What safety standards and final treatments are required for therapeutic biological products?
Therapeutic biological products must adhere to extremely rigorous safety standards, monitored by regulatory bodies like the EMA and FDA, focusing primarily on absolute sterility and contaminant control. Key contaminants include viruses, often introduced via animal serum, extraneous proteins that risk anaphylactic reactions, and pyrogens, which are substances that induce fever. Bacterial pyrogens require intense inactivation methods, such as dry heat exceeding 160°C, often treating containers at 250°C for 30 minutes to ensure complete destruction. For heat-sensitive (thermolabile) proteins, lyophilization (freeze-drying) is employed as a final treatment, involving controlled freezing, primary drying (sublimation of free water), and secondary drying (elimination of bound water) to ensure long-term stability and preservation.
- Contaminant Control: Viruses (often from animal serum).
- Contaminant Control: Extraneous Proteins (risk of anaphylactic reaction).
- Contaminant Control: Pyrogens (fever-inducing substances).
- Pyrogen Inactivation: Requires dry heat above 160°C.
- Pyrogen Inactivation: Containers treated at 250°C for 30 minutes.
- Final Treatment: Lyophilization (Freeze-drying) for thermolabile proteins.
- Regulation: Quality measured by EMA and FDA.
What are specific examples of key therapeutic proteins and their production methods?
Two major classes of therapeutic proteins are Interferons (IFNs) and Monoclonal Antibodies (mAbs), each requiring distinct production strategies. Interferons, such as IFN-α, are often produced using recombinant DNA technology in simpler systems like bacteria or yeast due to their relative simplicity, followed by purification via filtration and chromatography. Monoclonal Antibodies, however, require the complex Hybridoma Technology method, which involves fusing antibody-producing B lymphocytes with immortal myeloma cells using agents like PEG or electric fields. mAbs are typically cultivated in specialized bioreactors, such as hollow fiber systems, due to their complexity, and serve crucial roles as diagnostic markers, drug carriers, and in immunoseparation.
- Interferons (IFN): Types include α, β, and γ in humans.
- Interferons (IFN): IFN-α is often produced in Bacteria/Yeast using recombinant DNA.
- Interferons (IFN): Purification involves filtration followed by chromatography.
- Monoclonal Antibodies (mAbs): Produced via Hybridoma Technology (Myeloma + B Lymphocytes fusion).
- Monoclonal Antibodies (mAbs): Cultivated in Hollow Fiber Bioreactors.
- mAbs Therapeutic Uses: Diagnostic marker, Drug carrier (targeting tumors), and Immunoseparation.
How are essential vitamins produced industrially using biotechnology?
Industrial vitamin production relies heavily on biotransformation and fermentation processes utilizing specific microorganisms to achieve high yields efficiently. Vitamin C (L-ascorbic acid) is often produced using the modified Reichstein Process, involving microbes like *Gluconobacter oxydans* and *Corynebacterium* in sequential steps. Vitamin B12 (Cyanocobalamin) production is exclusively microbial, relying on *Propionobacterium* in a two-stage process that alternates between anaerobic and aerobic conditions. Vitamin B2 (Riboflavin) production is split between chemical synthesis and biotechnology, with biotransformation using mutant *Bacillus subtilis* or slower fermentation using *Eremothecium gossypii* being the dominant and most efficient methods today.
- Vitamin C: Produced via the Modified Reichstein Process.
- Vitamin C Microorganisms: *Gluconobacter oxydans* (Sorbitol pathway) and *Corynebacterium*.
- Vitamin B12: Production is exclusively microbial using *Propionobacterium*.
- Vitamin B12 Process: Two stages (intermediate anaerobic, final aerobic).
- Vitamin B2 Methods: Biotransformation (50%) using mutant *Bacillus subtilis*.
- Vitamin B2 Methods: Fermentation (30%) using *Eremothecium gossypii*.
Frequently Asked Questions
Why are mammalian cells sometimes required for protein production instead of bacteria?
Mammalian cells are necessary when the therapeutic protein requires complex post-translational modifications, specifically glycosylation. Bacteria cannot perform this process, which is crucial for the protein's correct folding, stability, and biological function in humans.
What is the primary purpose of purification in the final stages of protein production?
Purification ensures the final therapeutic product achieves maximum purity, removing contaminants like extraneous proteins, viruses, and pyrogens. This step is vital for meeting regulatory standards (EMA/FDA) and preventing adverse patient reactions, such as anaphylaxis or fever.
How does the Hybridoma Technology method produce Monoclonal Antibodies (mAbs)?
Hybridoma Technology involves fusing antibody-producing B lymphocytes with immortal myeloma cells, typically using PEG or electric fields. This creates hybrid cells that can continuously produce large quantities of highly specific monoclonal antibodies for therapeutic use.
