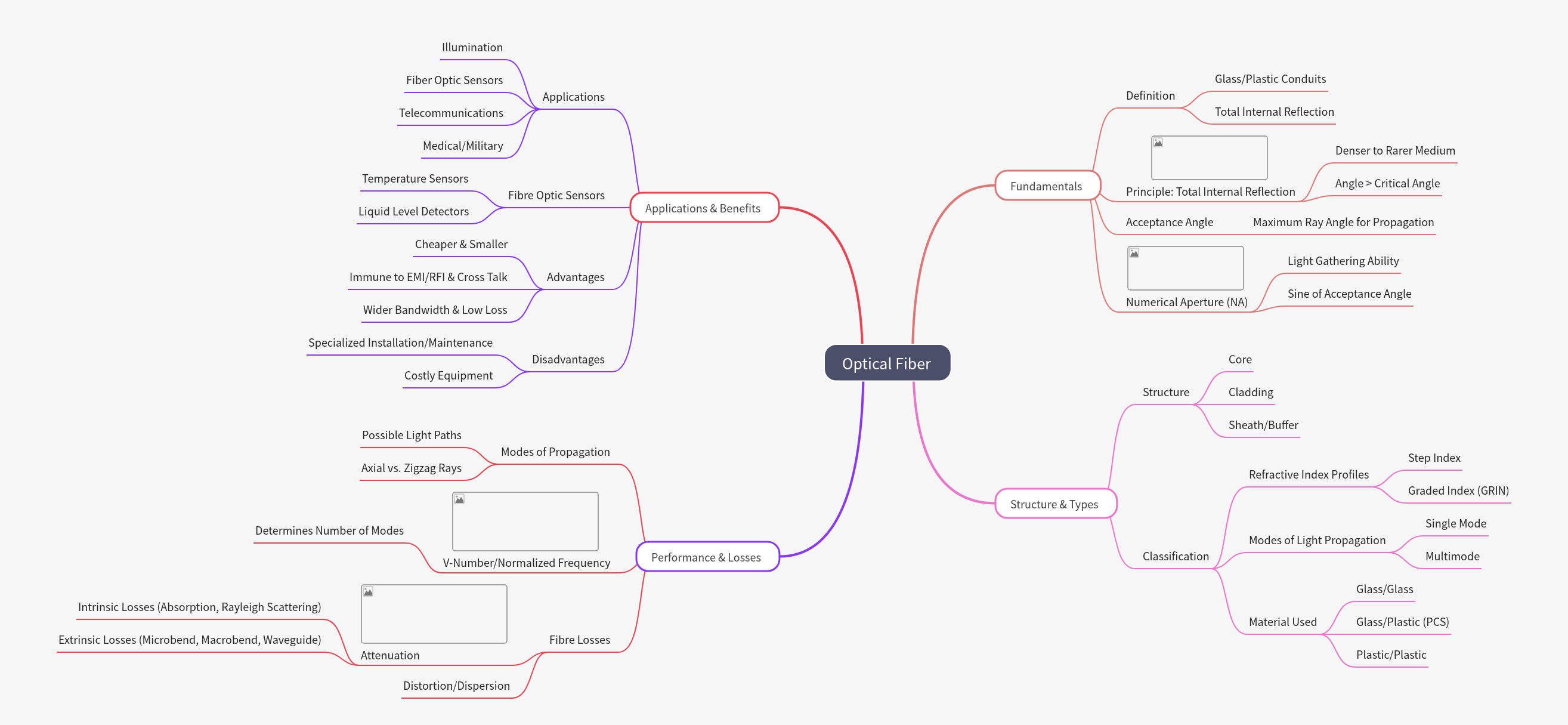

Featured Mind map
Optical Fiber Technology: Fundamentals, Types, and Uses
Optical fiber is a sophisticated technology utilizing thin strands of glass or plastic to transmit light signals over vast distances. Its operation relies on the principle of total internal reflection, efficiently guiding light within the fiber's core. This innovation underpins high-speed data transfer in telecommunications, medical imaging, and advanced sensing, offering superior bandwidth and immunity to electromagnetic interference compared to traditional copper wiring.
Key Takeaways
Optical fibers transmit light efficiently via total internal reflection.
Fibers comprise a core, cladding, and protective sheath for signal integrity.
Classification includes refractive index profiles, light modes, and material types.
Performance is impacted by attenuation and signal dispersion losses.
Key benefits are high bandwidth, EMI immunity, and compact size.
What are the fundamental principles of optical fiber?
Optical fiber operates on the fundamental principle of total internal reflection, a phenomenon where light traveling from a denser medium, such as the fiber's core, strikes the boundary of a rarer medium, the cladding, at an angle exceeding the critical angle. This causes the light to reflect entirely back into the core, enabling efficient guidance over long distances with minimal signal loss. Understanding the acceptance angle, which defines the maximum angle at which light can enter and propagate, and the numerical aperture (NA), a measure of the fiber's light-gathering capability, is crucial for optimizing light coupling and transmission efficiency in various applications. These principles ensure reliable data transfer.
- Definition: Optical fibers are thin, transparent conduits, typically made of glass or plastic, specifically engineered for the efficient transmission of light signals over significant distances.
- Principle: Total Internal Reflection, a crucial optical phenomenon where light traveling from a denser medium to a rarer medium reflects entirely back when its angle of incidence exceeds the critical angle.
- Acceptance Angle: Represents the maximum angle at which an external light ray can strike the fiber's end face and still be guided through the core via total internal reflection.
- Numerical Aperture (NA): A quantitative measure of an optical fiber's ability to gather and accept light, directly related to the sine of its acceptance angle and refractive indices.
How is optical fiber structured, and what are its main classifications?
Optical fiber is meticulously structured with a central core, a surrounding cladding, and an outer protective sheath, each serving a vital role in light transmission. The core, typically made of high-purity glass or plastic, acts as the pathway for light signals. The cladding, with a slightly lower refractive index than the core, facilitates total internal reflection, keeping the light confined. An external sheath or buffer layer provides mechanical protection against environmental damage. Fibers are classified based on their refractive index profiles, such as step-index (abrupt change) or graded-index (gradual change), the number of light modes they can carry (single-mode for one path, multimode for multiple paths), and the materials used in their construction, including all-glass, glass/plastic (PCS), or all-plastic variants.
- Structure: Comprises three essential layers: the central core for light transmission, the surrounding cladding for total internal reflection, and an outer protective sheath or buffer.
- Refractive Index Profiles: Includes Step Index fibers, which have an abrupt change in refractive index between core and cladding, and Graded Index (GRIN) fibers, featuring a gradual index change.
- Modes of Light Propagation: Categorized into Single Mode fibers, which allow only one light path, and Multimode fibers, capable of supporting multiple distinct light paths simultaneously.
- Material Used: Fibers are constructed from various materials, including all-Glass, Glass/Plastic (PCS) combinations, and entirely Plastic/Plastic compositions, each with specific applications.
What factors influence optical fiber performance, and what are common losses?
Optical fiber performance is significantly influenced by the modes of light propagation and various types of signal losses that can degrade transmission quality. Modes refer to the distinct paths light rays can take within the fiber, with the V-number, or normalized frequency, determining the total number of modes a fiber can support. A higher V-number generally indicates more modes, which can lead to increased dispersion. Fiber losses, primarily categorized as attenuation and distortion (dispersion), are critical performance inhibitors. Attenuation involves intrinsic losses like absorption and Rayleigh scattering, alongside extrinsic losses caused by microbends, macrobends, and waveguide imperfections. Distortion, or dispersion, causes the light pulse to spread out over time, limiting the fiber's effective bandwidth and data rate.
- Modes of Propagation: Refers to the various possible light paths within the fiber, including axial and zigzag rays, influencing signal integrity and speed.
- V-Number/Normalized Frequency: A dimensionless parameter that precisely determines the total number of propagating modes an optical fiber can support, directly impacting its bandwidth capabilities.
- Fibre Losses: Encompasses Attenuation, which includes intrinsic losses (absorption, Rayleigh scattering) and extrinsic losses (microbend, macrobend, waveguide imperfections), and Distortion/Dispersion, causing signal spreading.
Where is optical fiber used, and what advantages does it offer?
Optical fiber technology is extensively deployed across numerous sectors due to its superior performance characteristics and inherent benefits. It is indispensable in telecommunications, forming the backbone for high-speed internet, telephone, and television services. Beyond communication, it finds critical applications in illumination, advanced fiber optic sensors for precise measurements like temperature and liquid levels, and specialized fields such as medical imaging and military communications where security and reliability are paramount. The primary advantages of optical fiber include significantly wider bandwidth, enabling massive data transfer capacities, complete immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI), and a compact, lightweight design. Despite requiring specialized installation and potentially costly equipment, its benefits far outweigh these disadvantages for many modern applications.
- Applications: Widely utilized in Illumination, advanced Fiber Optic Sensors, high-speed Telecommunications networks, and critical Medical/Military sectors for secure data transfer.
- Fiber Optic Sensors: Specific examples include highly accurate Temperature Sensors and Liquid Level Detectors, leveraging light properties for precise environmental monitoring.
- Advantages: Offers significant benefits such as being more compact and lighter, complete immunity to EMI/RFI and cross-talk, and providing vastly wider bandwidth with significantly lower signal loss over distance.
- Disadvantages: Requires specialized installation techniques and maintenance procedures, and the initial investment in associated equipment can be relatively costly compared to traditional cabling.
Frequently Asked Questions
What is the core principle behind optical fiber?
Optical fiber transmits light using total internal reflection. Light travels through a denser core and reflects off a rarer cladding when hitting the boundary at an angle greater than the critical angle, keeping the signal efficiently contained within the fiber.
What are the main components of an optical fiber?
An optical fiber primarily consists of three essential layers: the central core, which guides the light signal; the cladding, which surrounds the core and facilitates total internal reflection; and an outer protective sheath, providing mechanical strength and environmental protection.
Why is optical fiber preferred over copper cables for data transmission?
Optical fiber offers several significant advantages over copper, including vastly wider bandwidth for faster data rates, complete immunity to electromagnetic interference, and much lower signal loss over long distances, making it superior for modern communication needs.
