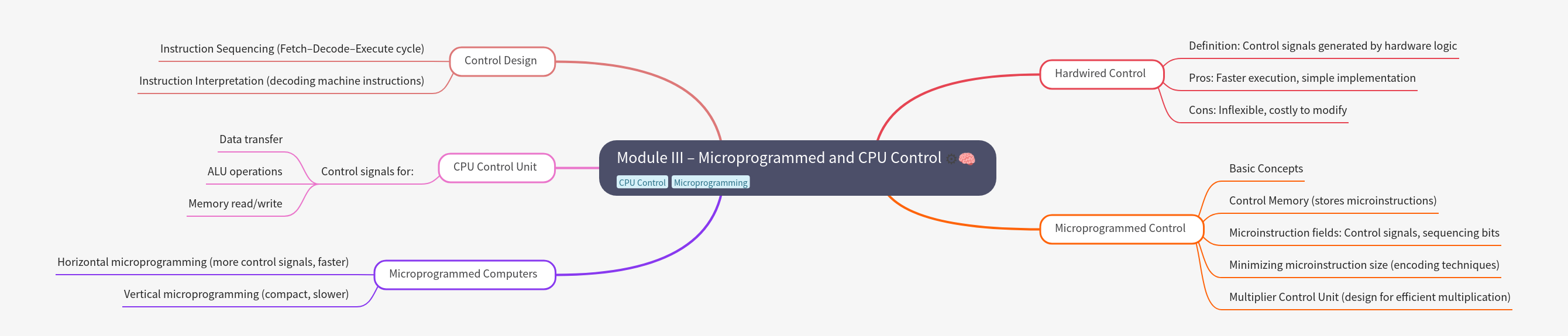

Microprogrammed and CPU Control Unit Design
CPU control involves generating precise timing and control signals necessary to execute instructions. This is achieved through two primary methods: hardwired control, which uses fixed logic for speed, or microprogrammed control, which uses stored microinstructions in control memory for greater flexibility and easier modification. The choice impacts performance and design complexity.
Key Takeaways
Control units manage instruction execution via precise timing and control signals.
Hardwired control offers maximum speed but lacks flexibility for design changes.
Microprogrammed control uses stored microinstructions for superior flexibility.
Instruction sequencing follows the fundamental Fetch–Decode–Execute cycle.
Control signals govern data transfer, ALU operations, and memory access within the CPU.
What is the purpose of Control Design in a CPU?
Control design focuses on the mechanisms required to manage the execution of machine instructions within the Central Processing Unit (CPU). This critical process ensures that all internal components, such as the Arithmetic Logic Unit (ALU), registers, and buses, operate in the correct sequence and at the precise time dictated by the program counter. Effective control design is essential for translating high-level program commands into the fundamental electrical signals that drive the hardware, thereby enabling the computer to perform complex tasks reliably and efficiently. It forms the backbone of the CPU's operational cycle, governing both the fetching and interpretation stages of every instruction.
- Instruction Sequencing, which involves the continuous Fetch–Decode–Execute cycle
- Instruction Interpretation, focusing on the decoding of complex machine instructions into actionable steps
How does Hardwired Control operate within a CPU?
Hardwired control implements the necessary control signals using fixed, optimized hardware logic circuits, typically composed of high-speed gates, decoders, and sequence counters. This approach generates control signals directly based on the instruction register contents and timing signals, resulting in extremely fast execution speeds because there is no need to access or fetch microinstructions from a separate memory unit. However, the design is inherently rigid and difficult to modify; any change to the instruction set architecture or control logic requires physically redesigning and replacing the underlying hardware components, making it costly and time-consuming to update or debug.
- Definition: Control signals are generated exclusively by dedicated hardware logic
- Pros: Offers the fastest possible execution speed and simple initial implementation
- Cons: Highly inflexible and expensive to modify or update after manufacturing
What functions does the CPU Control Unit perform?
The CPU Control Unit acts as the central coordinator of the processor, orchestrating all internal and external operations by issuing precise timing and control signals. Its primary function is to interpret the operational code (opcode) of the instruction fetched from memory and generate the necessary sequence of signals to execute that instruction correctly. These signals regulate the flow of data between various registers, initiate specific Arithmetic Logic Unit (ALU) operations, and manage interactions with the main memory for reading or writing data. By synchronizing these activities, the Control Unit ensures accurate and reliable processing across the entire system architecture.
- Control signals are generated for managing internal Data transfer between registers and buses
- Control signals are generated for initiating specific ALU operations (e.g., addition, subtraction, logic)
- Control signals are generated for controlling Memory read/write operations to access main storage
What are the basic concepts of Microprogrammed Control?
Microprogrammed control utilizes a specialized, high-speed memory, known as Control Memory, to store sequences of microinstructions that define the detailed steps for executing each machine instruction. Instead of relying on fixed logic, the control unit fetches and executes these microinstructions sequentially, where each microinstruction specifies the exact set of control signals needed for a single clock cycle. This method offers significant design flexibility, allowing engineers to easily modify the instruction set or fix bugs simply by updating the contents of the Control Memory, often without altering the physical hardware structure of the CPU itself, which simplifies maintenance.
- Basic Concepts of using software-like routines to control hardware operations
- Control Memory is the dedicated storage location where microinstructions are permanently stored
- Microinstruction fields include control signals and sequencing bits for controlling the flow
- Techniques are used for Minimizing microinstruction size, such as encoding methods
- Example application: Multiplier Control Unit design for efficient multiplication processes
What are the types of Microprogrammed Computer architectures?
Microprogrammed architectures are primarily categorized by how control signals are encoded within the microinstruction format, leading to horizontal and vertical designs. Horizontal microprogramming uses wide microinstructions where each bit directly controls a specific hardware component, maximizing parallelism and execution speed because minimal decoding is required. However, this approach necessitates a very large Control Memory. Conversely, vertical microprogramming uses narrower, highly encoded microinstructions that require additional decoding logic, resulting in a smaller Control Memory and simpler structure, though typically slower execution due to the necessary decoding step before signals are issued.
- Horizontal microprogramming: Characterized by more control signals and faster execution due to parallelism
- Vertical microprogramming: Characterized by a compact format and slower execution due to required decoding
Frequently Asked Questions
What is the main difference between hardwired and microprogrammed control?
Hardwired control uses fixed logic gates for maximum speed but is inflexible and costly to change. Microprogrammed control uses stored microinstructions in Control Memory, offering superior flexibility and easier modification.
How does the CPU Control Unit manage data flow?
The Control Unit generates precise timing and control signals that dictate when and where data moves within the processor. These signals manage data transfer between registers, initiate specific ALU operations, and control memory read/write cycles during instruction execution.
What are the key components of a microinstruction?
A microinstruction typically contains fields dedicated to control signals, which activate specific hardware components like the ALU or registers, and sequencing bits, which determine the address of the next microinstruction to be executed in the sequence.
