Gypsum Products in Dentistry: Models, Dies, and Properties
Dental gypsum products, derived from calcium sulfate hemihydrate, are essential materials used to create positive replicas (models and dies) of oral structures from impressions. These materials, categorized by particle size and porosity (Types II, III, IV), undergo a hydration reaction to form a hard dihydrate structure, crucial for fabricating accurate indirect dental restorations like crowns and bridges.

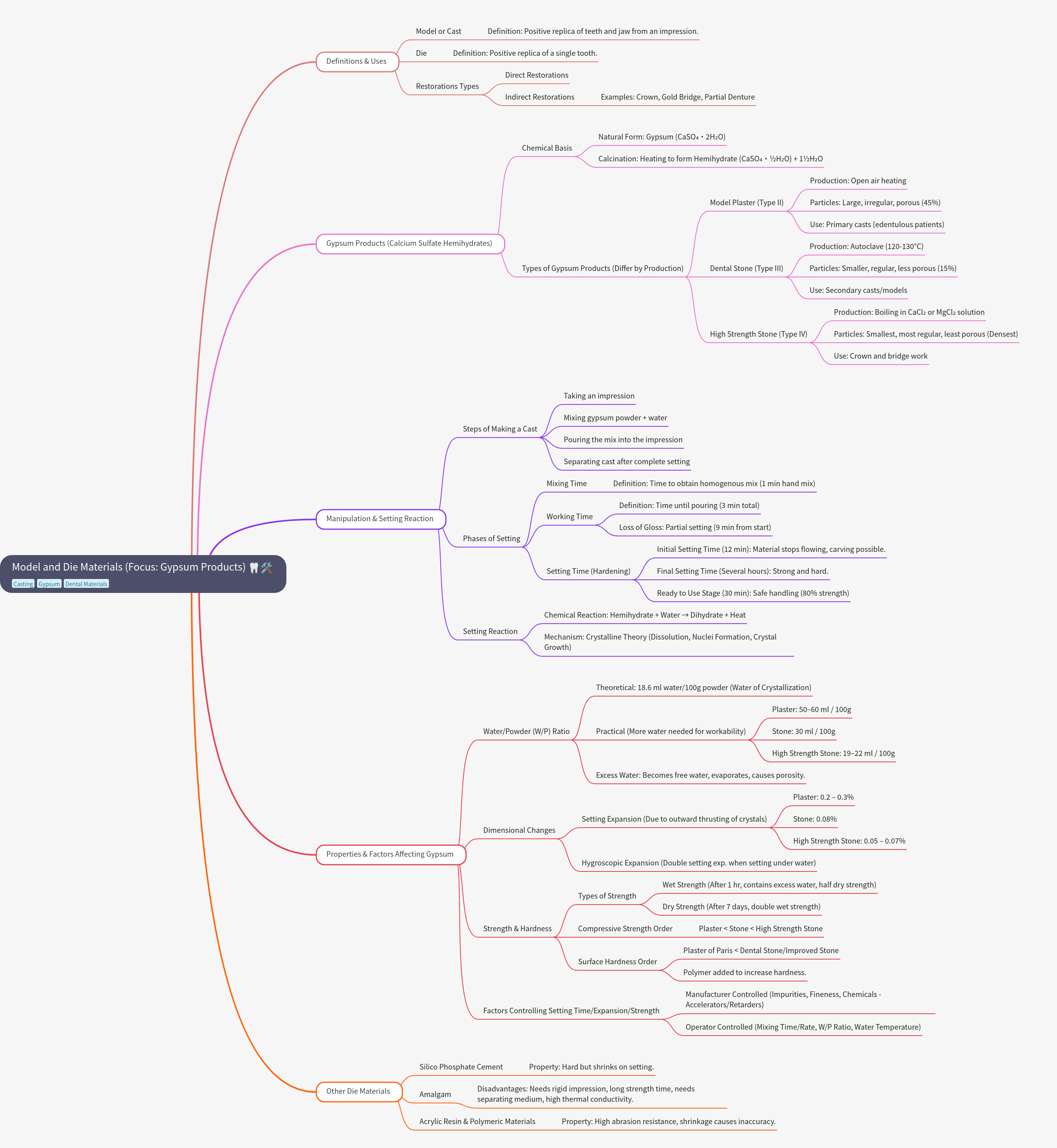

Key Takeaways
Gypsum products create positive replicas (models/dies) for indirect restorations.
Calcination converts natural gypsum (dihydrate) into usable hemihydrate powder.
Dental stone types (II, III, IV) differ based on production method and porosity.
The setting reaction is a hydration process that releases heat (exothermic).
Strength and expansion are controlled by the water-to-powder ratio and additives.
What are Models and Dies, and how are they used in dentistry?
Models and dies are fundamental tools in restorative dentistry, serving as positive replicas of the patient's teeth and jaw structures derived from negative impressions. A model or cast replicates the entire arch, often used for diagnosis or denture fabrication, while a die is a precise replica of a single prepared tooth. These replicas are essential for fabricating indirect restorations, which are dental appliances made outside the mouth, ensuring accuracy and proper fit before final placement.
- Model or Cast: Positive replica of teeth and jaw from an impression.
- Die: Positive replica of a single tooth.
- Restorations Types: Include direct restorations (placed directly in the mouth) and indirect restorations.
- Indirect Restorations Examples: Crown, Gold Bridge, Partial Denture.
How are Gypsum Products chemically derived and categorized?
Gypsum products are chemically derived from natural gypsum (calcium sulfate dihydrate, CaSO₄·2H₂O) through a process called calcination. This involves heating the natural form to remove water, resulting in calcium sulfate hemihydrate (CaSO₄·½H₂O), the powder used in dentistry. Different production methods—such as open-air heating or autoclaving—yield distinct particle structures, leading to various types of dental gypsum (Types II, III, and IV) that possess varying levels of porosity, strength, and required water content.
- Chemical Basis: Natural Gypsum (CaSO₄·2H₂O) is heated (calcination) to form Hemihydrate (CaSO₄·½H₂O).
- Model Plaster (Type II): Produced by open-air heating, resulting in large, irregular, porous particles (45% porosity); used for primary casts (edentulous patients).
- Dental Stone (Type III): Produced in an autoclave, yielding smaller, regular, less porous particles (15%); used for secondary casts/models.
- High Strength Stone (Type IV): Produced by boiling in salt solutions (CaCl₂ or MgCl₂), resulting in the smallest, most regular, and least porous particles (Densest); used for crown and bridge work.
What is the chemical setting reaction of gypsum and how is a cast made?
The setting reaction of gypsum is a chemical process where the powdered calcium sulfate hemihydrate is mixed with water and reverts back to the hard, stable calcium sulfate dihydrate, releasing heat in the process (exothermic reaction). This transformation follows the Crystalline Theory, involving dissolution of the hemihydrate, formation of dihydrate nuclei, and subsequent crystal growth. Proper manipulation involves precise timing—from mixing to working time and final setting—to ensure the resulting cast achieves maximum strength and accuracy for clinical use.
- Steps of Making a Cast: Taking an impression, mixing gypsum powder + water, pouring the mix into the impression, and separating the cast after complete setting.
- Mixing Time: Time to obtain homogenous mix (1 minute hand mix).
- Working Time: Time until pouring (3 minutes total); Loss of Gloss indicates partial setting (9 minutes from start).
- Setting Time (Hardening): Initial Setting Time (12 min): Material stops flowing, carving possible. Final Setting Time (Several hours): Strong and hard. Ready to Use Stage (30 min): Safe handling (80% strength).
- Setting Reaction: Chemical Reaction: Hemihydrate + Water → Dihydrate + Heat; Mechanism: Crystalline Theory (Dissolution, Nuclei Formation, Crystal Growth).
Which factors control the strength and dimensional stability of gypsum products?
The strength and dimensional stability of gypsum products are primarily controlled by the water-to-powder (W/P) ratio and the resulting porosity. A lower W/P ratio, such as that used for high-strength stone, minimizes excess water, leading to less porosity and higher compressive strength. All gypsum materials exhibit setting expansion due to crystal growth, but this expansion is lowest in high-strength stones. Strength also increases significantly over time, moving from wet strength (after 1 hour) to dry strength (after 7 days), which is approximately double the wet strength.
- Water/Powder (W/P) Ratio: Theoretical ratio is 18.6 ml water/100g powder; practical ratios are higher (Plaster: 50–60 ml/100g; High Strength Stone: 19–22 ml/100g); excess water becomes free water, evaporates, and causes porosity.
- Dimensional Changes: Setting Expansion (due to outward thrusting of crystals) varies by type (Plaster: 0.2–0.3%; High Strength Stone: 0.05–0.07%); Hygroscopic Expansion occurs when setting under water, doubling the setting expansion.
- Strength & Hardness: Wet Strength (After 1 hr, half dry strength) vs. Dry Strength (After 7 days, double wet strength); Compressive Strength Order: Plaster < Stone < High Strength Stone.
- Factors Controlling Setting Time/Expansion/Strength: Manufacturer Controlled (Impurities, Fineness, Accelerators/Retarders); Operator Controlled (Mixing Time/Rate, W/P Ratio, Water Temperature).
What alternative materials are used for dental dies besides gypsum?
While gypsum products are the standard for models and dies, several alternative materials are available, each presenting unique advantages and disadvantages regarding accuracy, strength, and handling. These alternatives are often employed when specific physical properties, such as extreme hardness or resistance to abrasion, are required for complex restorative procedures. However, these materials frequently introduce trade-offs, such as setting shrinkage or demanding manipulation requirements, which must be carefully managed to ensure the final restoration fits precisely.
- Silico Phosphate Cement: Property: Hard but shrinks on setting.
- Amalgam: Disadvantages: Needs rigid impression, long strength time, needs separating medium, high thermal conductivity.
- Acrylic Resin & Polymeric Materials: Property: High abrasion resistance, but shrinkage causes inaccuracy.
Frequently Asked Questions
Why do different gypsum products require different amounts of water?
The water-to-powder ratio differs because the particle shapes vary. Plaster has irregular, porous particles requiring more water to wet the surface, while dense, regular particles in high-strength stone need less water.
What is the difference between wet strength and dry strength in gypsum?
Wet strength is measured after one hour, when excess water is still present, making it weaker. Dry strength, achieved after about seven days when all excess water has evaporated, is typically double the wet strength.
What is calcination, and why is it necessary for dental gypsum?
Calcination is the process of heating natural gypsum (dihydrate) to remove water, converting it into the powdered calcium sulfate hemihydrate. This hemihydrate is the reactive form needed to mix with water and set into a hard cast.
Related Mind Maps
View AllNo Related Mind Maps Found
We couldn't find any related mind maps at the moment. Check back later or explore our other content.
Explore Mind Maps
