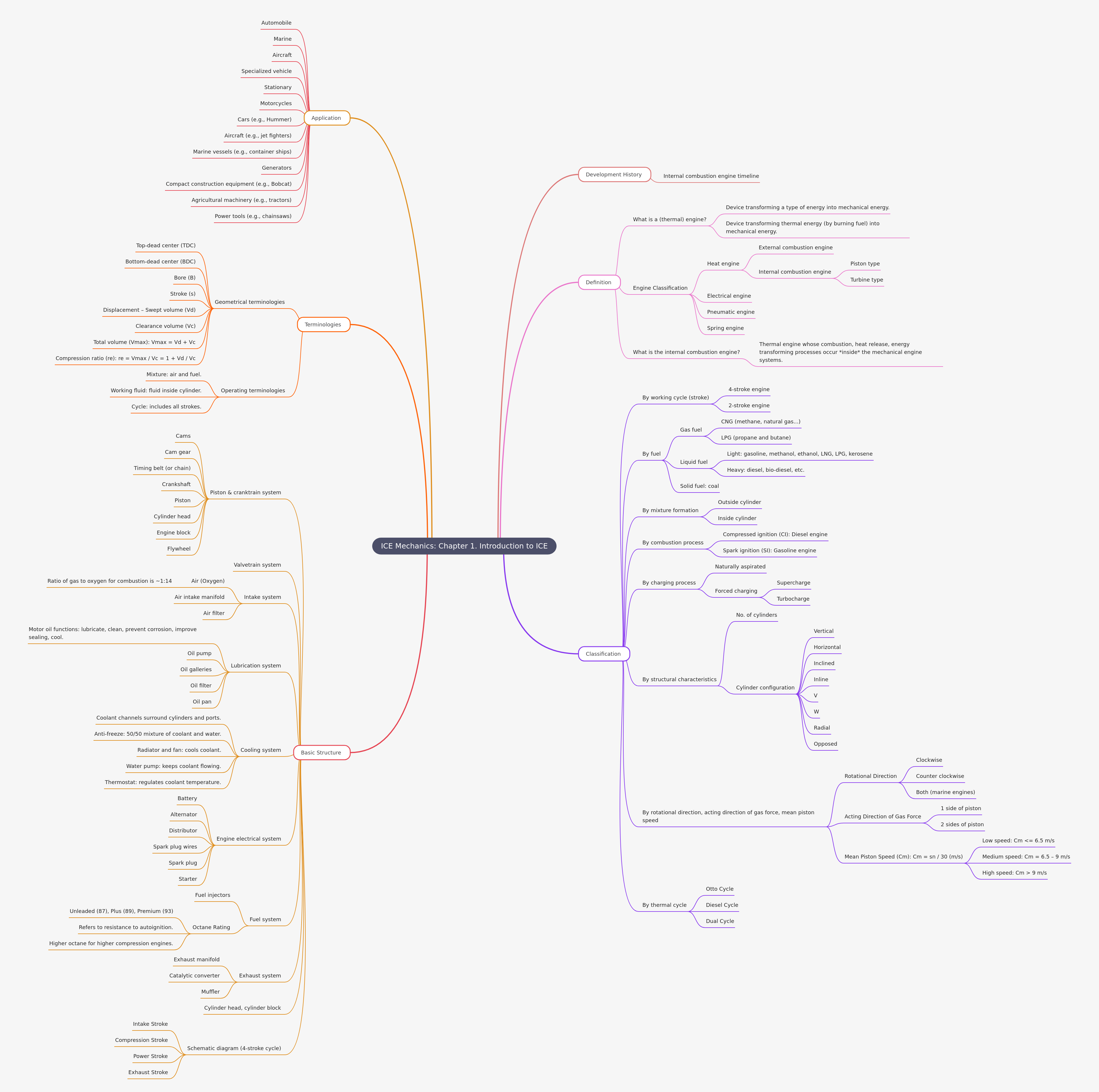

Featured Mind map
Introduction to ICE Mechanics
Internal Combustion Engines (ICE) convert chemical energy from fuel combustion into mechanical energy directly within the engine's system. They are classified by working cycle, fuel type, and structural characteristics. ICEs power a vast array of machines, from automobiles to industrial equipment, utilizing complex mechanical, electrical, and fluid systems to generate power efficiently.
Key Takeaways
ICEs convert fuel's chemical energy into mechanical power internally.
Engines are classified by stroke, fuel, combustion, and structural design.
Key components include piston, cranktrain, valvetrain, and fuel systems.
Essential terms define engine geometry and operational cycles.
ICEs are widely applied in automotive, marine, aircraft, and industrial sectors.
What is the historical development of Internal Combustion Engines?
The journey of internal combustion engines (ICE) began centuries ago, evolving from rudimentary concepts to the sophisticated machines powering modern society. Early experiments with gunpowder and steam laid foundational principles for converting thermal energy into mechanical work. The 19th century marked pivotal breakthroughs, with Nikolaus Otto's four-stroke engine in 1876 and Rudolf Diesel's compression-ignition engine in 1892. These innovations transformed transportation and industry, establishing the ICE as a cornerstone of technological progress.
- Internal combustion engine timeline: Traces key innovations and inventors, shaping modern power.
What defines an Internal Combustion Engine and how are engines classified?
An internal combustion engine is fundamentally a thermal engine where the combustion of fuel, along with the subsequent release and transformation of heat into mechanical energy, occurs entirely within the engine's mechanical systems. This crucial internal process distinguishes it from external combustion engines. Broadly, engines are devices converting any energy type into mechanical energy, but thermal engines specifically harness heat from burning fuel to generate power.
- Thermal engine: Transforms thermal energy from burning fuel into mechanical energy.
- Internal combustion engine: Combustion and energy transformation happen inside the engine system.
- Heat engines: Encompass both external and internal combustion types.
- Engine classification: Includes heat, electrical, pneumatic, and spring engines.
How are Internal Combustion Engines categorized based on their design and operation?
Internal Combustion Engines are categorized by several key characteristics, providing a comprehensive understanding of their diverse designs and operational principles. These classifications help differentiate engines based on their working cycle (e.g., 4-stroke or 2-stroke), the type of fuel they consume, how the fuel-air mixture is formed, and the specific combustion process employed. Further distinctions are made by charging methods, structural features like cylinder count and arrangement, and even their underlying thermal cycles, such as Otto or Diesel.
- By working cycle: Differentiates between 4-stroke and 2-stroke engines.
- By fuel type: Includes gas (CNG, LPG), liquid (gasoline, diesel), and solid fuels.
- By mixture formation: Occurs either outside or inside the cylinder.
- By combustion process: Compressed ignition (Diesel) or spark ignition (Gasoline).
- By charging process: Naturally aspirated or forced charging (supercharge, turbocharge).
- By structural characteristics: Number of cylinders and their configuration (e.g., inline, V, radial).
- By rotational direction: Clockwise, counter-clockwise, or both (common in marine engines).
- By thermal cycle: Defines the thermodynamic process, like Otto, Diesel, and Dual cycles.
What are the fundamental components and systems of an Internal Combustion Engine?
The basic structure of an internal combustion engine comprises several interconnected systems working in harmony to produce power. At its core is the piston and cranktrain system, which converts the linear motion of the piston into rotational motion, driving the vehicle or machinery. Supporting this are the valvetrain, intake, lubrication, cooling, electrical, fuel, and exhaust systems, each playing a critical role in the engine's efficient operation. The cylinder head and engine block form the main housing, containing the combustion process and supporting all moving parts.
- Piston & cranktrain system: Converts piston's linear motion to crankshaft's rotational power.
- Valvetrain system: Precisely controls the opening and closing of intake and exhaust valves.
- Intake system: Delivers filtered air (oxygen) to the cylinders for combustion.
- Lubrication system: Reduces friction, cleans, cools, and seals engine components with motor oil.
- Cooling system: Manages engine temperature using coolant, radiator, and water pump.
- Engine electrical system: Provides ignition spark, starting power, and charges the battery.
- Fuel system: Delivers and precisely injects fuel into the combustion chamber.
- Exhaust system: Safely manages and expels combustion byproducts through manifold and muffler.
- Four-stroke cycle: Involves distinct intake, compression, power, and exhaust strokes for operation.
What are the essential terminologies used to describe Internal Combustion Engines?
Understanding internal combustion engines requires familiarity with specific terminologies that describe their geometry and operation. Geometrical terms define the physical dimensions and volumes within the cylinder, such as Top-Dead Center (TDC) and Bottom-Dead Center (BDC), bore, stroke, and various volumes like displacement and clearance. Operational terms, on the other hand, describe the substances involved and the sequence of events, including the precise fuel-air mixture, the working fluid within the cylinder, and the complete engine cycle.
- Top-dead center (TDC): The piston's highest point of travel in the cylinder.
- Bottom-dead center (BDC): The piston's lowest point of travel in the cylinder.
- Bore (B): The internal diameter of the engine cylinder.
- Stroke (s): The linear distance the piston travels between TDC and BDC.
- Displacement (Vd): The volume swept by the piston during one stroke.
- Clearance volume (Vc): The volume remaining above the piston when it is at TDC.
- Compression ratio (re): The ratio of total cylinder volume to clearance volume.
- Mixture: The precise combination of air and fuel prepared for combustion.
- Working fluid: The gases (air, fuel, combustion products) inside the cylinder.
- Cycle: The complete sequence of events an engine undergoes to produce power.
Where are Internal Combustion Engines most commonly applied today?
Internal Combustion Engines are ubiquitous, powering a vast array of machines and vehicles across numerous sectors globally. From personal automobiles and motorcycles that facilitate daily commutes to massive marine vessels and aircraft enabling global transport, ICEs are indispensable. They also serve critical roles in specialized vehicles, stationary power generation (like generators), and various industrial and agricultural machinery. Their versatility, power density, and reliability have made them a cornerstone of modern infrastructure and mobility worldwide.
- Automotive: Powers cars, motorcycles, and specialized road vehicles.
- Marine: Drives boats, ships, and large container vessels.
- Aircraft: Used in jet fighters and various smaller aircraft.
- Stationary power: Essential for generators providing electricity.
- Industrial: Found in compact construction equipment like Bobcats.
- Agricultural: Powers tractors and other farm machinery.
- Power tools: Utilized in chainsaws and lawnmowers for outdoor tasks.
Frequently Asked Questions
What is the primary function of an internal combustion engine?
Its primary function is to convert the chemical energy stored in fuel into mechanical energy, which then powers various machines and vehicles efficiently.
How do 4-stroke and 2-stroke engines differ?
A 4-stroke engine completes its cycle in four piston strokes (intake, compression, power, exhaust), while a 2-stroke engine completes it in two strokes, combining some processes for simplicity.
Why is octane rating important for gasoline?
Octane rating indicates a fuel's resistance to autoignition or "knocking." Higher octane fuels are crucial for high-compression engines to prevent premature, uncontrolled combustion.
