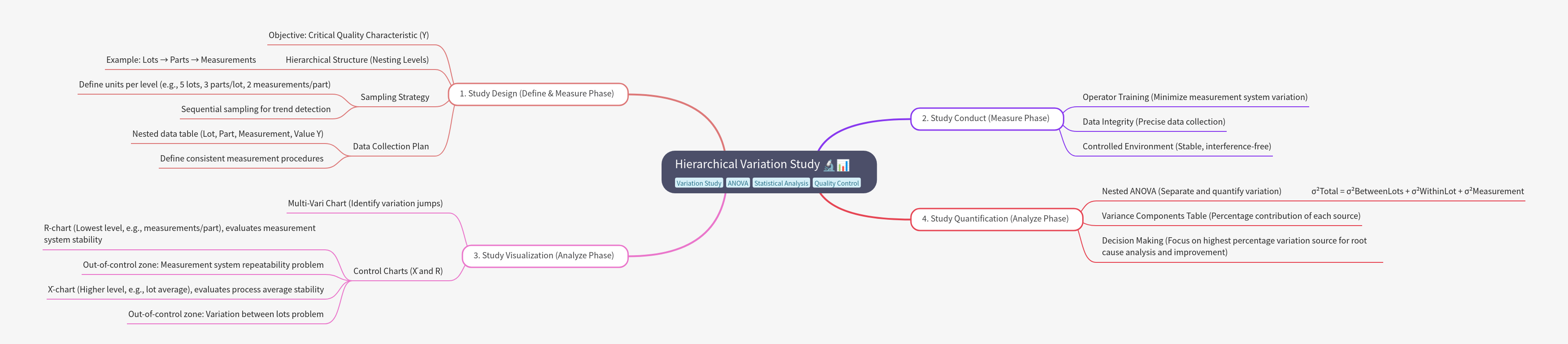

Featured Mind Map

Hierarchical Variation Study Guide

A hierarchical variation study systematically analyzes how total variation in a process or product is distributed across different nested levels. It identifies primary sources of variability, such as differences between batches, within parts, or from measurement systems. Quantifying these contributions helps pinpoint areas for targeted improvement, enhancing quality and efficiency.

Key Takeaways

1

Hierarchical studies break down total variation into distinct levels.

2

Careful study design and data collection are fundamental for accuracy.

3

Multi-Vari and Control Charts visualize variation patterns effectively.

4

Nested ANOVA quantifies each source's contribution to total variation.

5

Target improvement efforts where variation sources are most significant.

Hierarchical Variation Study Guide

How do you design a hierarchical variation study?

Designing a hierarchical variation study involves meticulously planning the investigation to accurately capture and analyze variability across different levels of a process or product. This critical initial phase, often aligned with the Define and Measure stages of a quality improvement methodology, focuses on clearly defining the Critical Quality Characteristic (Y) that will be the objective of the study. Establishing the precise hierarchical structure, such as identifying distinct levels like lots, parts, and individual measurements, is fundamental. Furthermore, developing a robust sampling strategy that specifies the number of units at each level, alongside a detailed data collection plan ensuring consistent measurement procedures and a nested data table, is paramount. Proper design ensures the collected data is suitable for rigorous statistical analysis, allowing for a precise breakdown of variation sources.

  • Objective: Clearly define the Critical Quality Characteristic (Y) that will be the primary focus and objective of the study.
  • Hierarchical Structure: Establish the precise nesting levels, such as identifying distinct groups like production lots, individual parts within those lots, and multiple measurements taken on each part.
  • Sampling Strategy: Carefully determine the number of units to sample at each level, for example, selecting 5 lots, 3 parts per lot, and 2 measurements per part, considering sequential sampling for trend detection.
  • Data Collection Plan: Develop a comprehensive plan including a nested data table structure (Lot, Part, Measurement, Value Y) and defining consistent, standardized measurement procedures to ensure data accuracy.

What are the key steps in conducting a hierarchical variation study?

Conducting a hierarchical variation study requires careful execution during the Measure phase to ensure data integrity and minimize extraneous influences that could obscure true process variability. This involves comprehensive operator training to significantly reduce measurement system variation, ensuring all personnel follow standardized procedures consistently. Emphasizing precise data collection is crucial to avoid errors and maintain the accuracy of the nested data structure. Additionally, maintaining a controlled environment, stable and free from external interference, is paramount for obtaining reliable and representative data. Adhering strictly to these practices ensures that observed variations genuinely reflect the process and product, rather than inconsistencies in the study's execution or measurement system.

  • Operator Training: Implement thorough training programs for all operators involved to minimize variation introduced by the measurement system itself.
  • Data Integrity: Ensure precise and accurate data collection by following established protocols rigorously, maintaining the integrity of all recorded observations.
  • Controlled Environment: Conduct all measurements within a stable, interference-free environment to prevent external factors from influencing the results and introducing unwanted variability.

How can you visualize variation in a hierarchical study?

Visualizing variation in a hierarchical study, a key component of the Analyze phase, helps identify patterns and potential sources of variability before formal quantification. Tools like Multi-Vari Charts are exceptionally effective for visually identifying significant variation jumps or trends between different levels or factors within the hierarchy. Control Charts, specifically X-bar and R charts, are indispensable for assessing the stability of both the process and the measurement system over time. The R-chart evaluates repeatability at the lowest measurement level, indicating measurement system stability, while the X-bar chart monitors the stability of higher-level averages, revealing if process variation is in control or if special causes are present, demanding further investigation.

  • Multi-Vari Chart: Utilize this graphical tool to visually identify significant variation jumps or patterns across different hierarchical levels, providing immediate insights into potential problem areas.
  • Control Charts (X̄ and R): Employ these statistical process control charts to assess stability:
  • R-chart: Specifically evaluates the stability and repeatability of the measurement system at the lowest level (e.g., measurements per part).
  • X̄-chart: Monitors the stability of the process average at higher levels (e.g., lot average), indicating if the process is in statistical control.

What statistical methods quantify hierarchical variation?

Quantifying variation in a hierarchical study, also within the Analyze phase, involves employing advanced statistical methods to precisely determine the contribution of each hierarchical level to the total variation. Nested ANOVA (Analysis of Variance) stands as the primary statistical tool for this purpose, adeptly separating and quantifying distinct variance components such as variation between lots, within individual lots, and the inherent measurement error. The output typically includes a comprehensive Variance Components Table, which clearly presents the percentage contribution of each identified source to the overall variation. This precise quantification is absolutely critical for informed decision-making, guiding improvement efforts to strategically focus resources on the sources contributing most significantly to overall product or process variability.

  • Nested ANOVA: Apply this powerful statistical technique to separate and quantify the individual contributions of each hierarchical level to the total variation, such as σ²Total = σ²BetweenLots + σ²WithinLot + σ²Measurement.
  • Variance Components Table: Generate a table that clearly displays the percentage contribution of each identified source of variation, providing a clear understanding of their relative impact.
  • Decision Making: Use the quantified variance components to make informed decisions, strategically focusing root cause analysis and improvement efforts on the sources contributing the highest percentage of overall variation.

Frequently Asked Questions

Q

What is the main purpose of a hierarchical variation study?

A

The main purpose is to identify and quantify how total variation in a process or product is distributed across different nested levels. This helps pinpoint the most significant sources of variability for targeted improvement efforts.

Q

Why is a Multi-Vari Chart useful in these studies?

A

A Multi-Vari Chart visually displays variation patterns across different factors and levels. It helps quickly identify where significant variation jumps occur, providing initial insights into potential problem areas before detailed statistical analysis.

Q

What does Nested ANOVA reveal about variation?

A

Nested ANOVA statistically separates and quantifies the contribution of each hierarchical level to the total variation. It breaks down overall variability into components like between-batch, within-batch, and measurement error, guiding focused improvement strategies.
