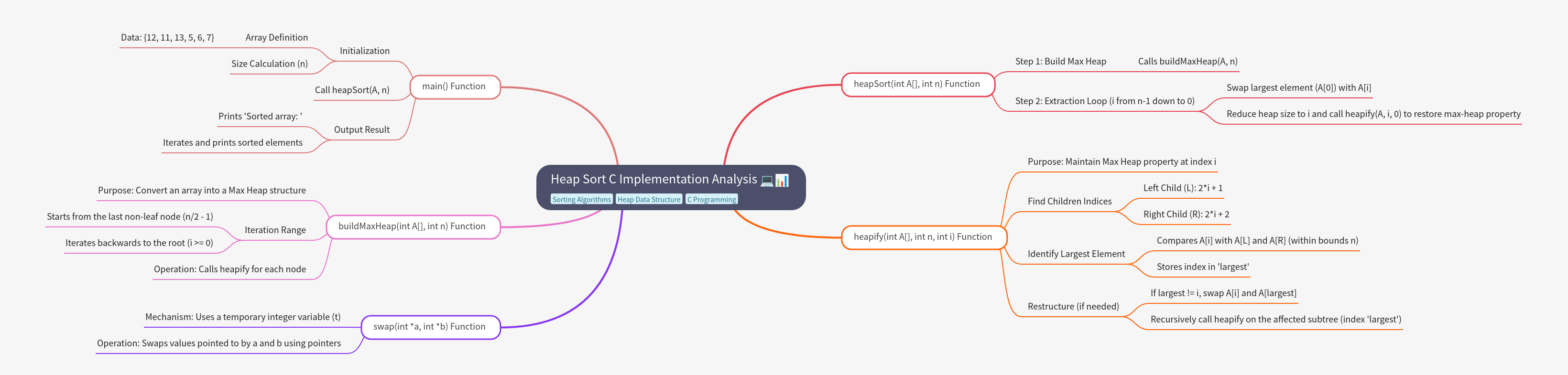

Heap Sort C Implementation Analysis: Functions & Steps

Heap Sort is a highly efficient, comparison-based sorting algorithm that leverages the Max Heap data structure. The C implementation systematically sorts an array by first converting it into a Max Heap using `buildMaxHeap`. It then repeatedly extracts the largest element from the root, placing it at the end of the array, and uses `heapify` to restore the heap property until the entire array is sorted.

Key Takeaways

1

Heap Sort initializes the array structure using the `buildMaxHeap` function.

2

The `heapify` function is essential for maintaining the Max Heap property recursively.

3

The `heapSort` function iteratively extracts the maximum element to complete the sorting.

4

Array indices for children are calculated using 2*i + 1 and 2*i + 2 formulas.

5

The `swap` utility function facilitates element exchange using pointer references.

Heap Sort C Implementation Analysis: Functions & Steps

What is the role of the main() function in the Heap Sort implementation?

The `main()` function acts as the program's control center, defining the initial state and managing the execution flow of the Heap Sort algorithm. It begins by initializing the unsorted array with specific data elements, such as {12, 11, 13, 5, 6, 7}, and dynamically calculates the array size (n) required for the sorting functions. Crucially, `main()` initiates the entire sorting process by calling `heapSort(A, n)`. Once the sorting is complete, it handles the output phase, printing a clear label like 'Sorted array:' and then iterating through the modified array to display the final, ordered sequence of elements to the user. This ensures the entire process is encapsulated and verifiable.

  • Initialization involves defining the array data, for example: {12, 11, 13, 5, 6, 7}.
  • Calculates the size (n) of the array, which determines the bounds for sorting.
  • Calls the primary sorting function: `heapSort(A, n)`.
  • Output Result prints the label 'Sorted array:' and iterates to display the final sorted elements.

How does the heapSort function manage the overall sorting process?

The `heapSort` function orchestrates the two main phases required for sorting: heap construction and element extraction. It starts by calling `buildMaxHeap(A, n)` to transform the input array into a Max Heap, ensuring the largest element is at the root (index 0). Following construction, the function enters a crucial extraction loop that iterates backward from the last element (n-1). In each iteration, it swaps the current largest element (A[0]) with the element at the current index A[i]. This places the largest element into its correct sorted position. The function then logically reduces the heap size to `i` and calls `heapify(A, i, 0)` to efficiently restore the Max Heap property on the remaining unsorted portion.

  • Step 1: Build Max Heap, which is achieved by calling the specialized function `buildMaxHeap(A, n)`.
  • Step 2: Execute the extraction loop, iterating backward from index n-1 down to 0.
  • Within the loop, swap the largest element (A[0]) with the element at the current index A[i].
  • Reduce the effective heap size to i and call `heapify(A, i, 0)` to restore the Max Heap property efficiently.

What is the purpose and mechanism of the buildMaxHeap function?

The fundamental purpose of `buildMaxHeap` is to convert an arbitrary array structure into a fully functional Max Heap, a prerequisite for the Heap Sort algorithm. This process is optimized by recognizing that leaf nodes inherently satisfy the heap property. Therefore, the function begins its iteration from the last non-leaf node, calculated as (n/2 - 1), and proceeds backward towards the root (index 0). For every node encountered in this range, the function calls `heapify`. By systematically applying `heapify` from the bottom up, it ensures that by the time the iteration reaches the root, the entire array adheres to the Max Heap property, guaranteeing the largest element is correctly positioned at A[0].

  • Purpose: Convert the input array into a robust Max Heap structure.
  • Iteration Range starts from the last non-leaf node, calculated as (n/2 - 1).
  • Iterates backwards to the root, continuing while the index (i) is greater than or equal to 0.
  • Operation: Calls the `heapify` function for each non-leaf node in the iteration range.

How does the heapify function maintain the Max Heap property?

The `heapify` function is the recursive core of Heap Sort, designed specifically to maintain the Max Heap property at a given index `i` within a heap of size `n`. It first determines the indices of the left child (2*i + 1) and the right child (2*i + 2). It then performs comparisons to identify the largest element among the parent (A[i]) and its children, ensuring the comparison stays within the array bounds (n). The index of this largest element is stored in the 'largest' variable. If the parent is not the largest element, a swap is executed between A[i] and A[largest], and the function recursively calls itself on the affected subtree to propagate the change and restore the heap property down the structure.

  • Purpose: Maintain the critical Max Heap property at the specified index i.
  • Find Children Indices: Left Child (L) is calculated as 2*i + 1, and Right Child (R) is 2*i + 2.
  • Identify Largest Element: Compares A[i] with A[L] and A[R], ensuring bounds check (n).
  • Stores the index of the largest element found in the 'largest' variable.
  • Restructure (if needed): If largest != i, swap A[i] and A[largest].
  • Recursively call `heapify` on the affected subtree, using the index 'largest'.

Why is the swap function necessary in the Heap Sort implementation?

The `swap` function is an essential utility that facilitates the exchange of values between two memory locations, a frequent requirement during both the heap construction and the element extraction phases of Heap Sort. Because C passes arguments by value, this function must accept pointers (`int *a`, `int *b`) to the integers, allowing it to directly modify the contents of the array elements referenced by the pointers. The mechanism is straightforward: it uses a temporary integer variable (`t`) to securely hold the value of the first element while the exchange occurs. This ensures that the element rearrangement, vital for placing the largest element correctly or restoring the heap structure, is performed efficiently and accurately.

  • Mechanism: Uses a temporary integer variable (t) to securely hold one value during the exchange.
  • Operation: Swaps the values pointed to by pointers a and b, modifying the original array elements.

Frequently Asked Questions

Q

What data structure does Heap Sort rely on?

A

Heap Sort relies fundamentally on the Binary Heap data structure, specifically utilizing a Max Heap, where the parent node is always greater than or equal to its children's values.

Q

What is the primary role of the heapify function?

A

The primary role of `heapify` is to restore or maintain the Max Heap property after an element has been moved or replaced, ensuring the largest element remains at the root of the subtree recursively.

Q

How does buildMaxHeap determine where to start iterating?

A

It starts iterating from the last non-leaf node, calculated as (n/2 - 1), because all nodes after this index are leaves and inherently satisfy the heap property, optimizing the initial construction time.
