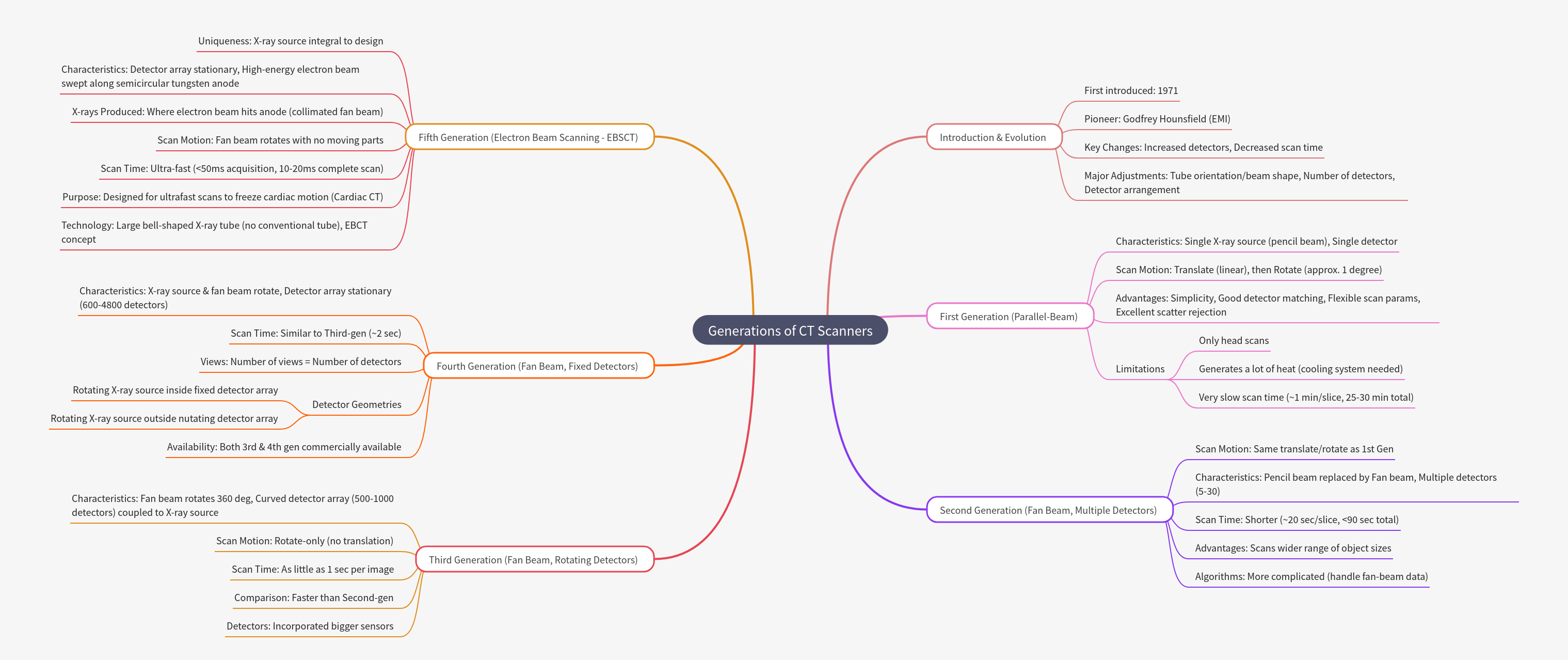

Featured Mind map
Generations of CT Scanners: Evolution & Features
Computed Tomography (CT) scanners have evolved significantly through five distinct generations, each marked by advancements in X-ray source and detector configurations. This progression led to dramatically reduced scan times, improved image quality, and expanded diagnostic capabilities. Early systems were slow and limited, while later generations introduced fan beams, rotating components, and ultimately, electron beam technology for rapid, specialized imaging.
Key Takeaways
CT scanners evolved through five distinct generations.
Each generation improved scan speed and image quality.
First-gen used single pencil beam, resulting in slow scans.
Later generations introduced fan beams and multiple detectors.
Fifth-gen offers ultrafast, specialized cardiac imaging.
What is the historical evolution of CT scanners?
Computed Tomography (CT) scanners, first introduced in 1971 by pioneer Godfrey Hounsfield, have undergone significant evolution to become indispensable diagnostic tools. Early development focused on overcoming limitations in scan time and image resolution. Key changes across generations primarily involved increasing the number of detectors, refining X-ray tube orientation and beam shapes, and optimizing detector arrangements. These continuous adjustments aimed to enhance efficiency, reduce patient exposure, and expand the range of clinical applications, marking a remarkable journey of technological advancement in medical imaging.
- First introduced in 1971.
- Pioneered by Godfrey Hounsfield (EMI).
- Key changes included increased detectors and decreased scan time.
- Major adjustments involved tube orientation, beam shape, and detector arrangement.
How did the first generation of CT scanners operate?
The first generation of CT scanners, known for its parallel-beam design, utilized a single X-ray source emitting a narrow pencil beam and a single detector. Its operational method involved a translate-then-rotate motion, where the X-ray tube and detector moved linearly across the patient before rotating approximately one degree for the next projection. This design offered simplicity, good detector matching, flexible scan parameters, and excellent scatter rejection. However, it was severely limited by extremely long scan times, often taking 25-30 minutes for a complete study, and was initially restricted to head scans due to heat generation issues.
- Characterized by a single X-ray source (pencil beam) and a single detector.
- Scan motion involved translating linearly, then rotating approximately one degree.
- Advantages included simplicity, good detector matching, and excellent scatter rejection.
- Limitations were head-only scans, significant heat generation, and very slow scan times (up to 1 minute per slice).
What improvements did the second generation CT scanners introduce?
The second generation of CT scanners significantly improved upon its predecessor by replacing the narrow pencil beam with a wider fan beam and incorporating multiple detectors, typically ranging from 5 to 30. While retaining the translate-then-rotate scan motion similar to the first generation, these innovations dramatically shortened scan times to approximately 20 seconds per slice, reducing total scan duration to under 90 seconds. This allowed for scanning a wider range of object sizes beyond just the head. The increased complexity of the fan-beam data, however, necessitated more sophisticated algorithms for image reconstruction, marking a crucial step in CT technology.
- Maintained the translate-then-rotate scan motion.
- Replaced the pencil beam with a fan beam and used multiple detectors (5-30).
- Achieved shorter scan times, around 20 seconds per slice.
- Allowed scanning of a wider range of object sizes.
- Required more complicated algorithms to handle fan-beam data.
How did third generation CT scanners achieve faster imaging?
Third generation CT scanners revolutionized imaging speed by adopting a rotate-only scan motion, eliminating the need for linear translation. This design featured a fan beam coupled with a curved detector array, comprising 500-1000 detectors, which rotated 360 degrees around the patient alongside the X-ray source. This synchronized rotation allowed for significantly faster image acquisition, with scan times as little as one second per image, making it considerably quicker than second-generation systems. The incorporation of larger sensors within the detector array further enhanced image quality and efficiency, establishing a new benchmark for rapid diagnostic imaging.
- Characterized by a fan beam and a curved detector array (500-1000 detectors) coupled to the X-ray source.
- Employed a rotate-only scan motion.
- Achieved scan times as low as one second per image, faster than second-gen.
- Incorporated bigger sensors in the detectors.
What distinguishes fourth generation CT scanners from earlier designs?
Fourth generation CT scanners introduced a unique configuration where the X-ray source and fan beam rotated, but the detector array remained stationary, encircling the patient with 600-4800 detectors. This design offered scan times similar to third-generation systems, typically around two seconds per image. The number of views acquired directly corresponded to the number of detectors, providing extensive data. Detector geometries varied, including rotating X-ray sources inside a fixed array or outside a nutating array. Both third and fourth-generation systems became commercially available, offering distinct approaches to achieving rapid, high-quality CT imaging with different engineering trade-offs.
- Featured a rotating X-ray source and fan beam, with a stationary detector array (600-4800 detectors).
- Scan times were similar to third-generation, approximately two seconds.
- The number of views equaled the number of detectors.
- Detector geometries included rotating X-ray sources inside a fixed detector array.
- Both third and fourth generations were commercially available.
What is unique about fifth generation CT scanners and their purpose?
The fifth generation, known as Electron Beam Scanning CT (EBSCT), stands out due to its integral X-ray source design and absence of conventional moving parts for X-ray generation. It features a stationary detector array and a high-energy electron beam swept along a semicircular tungsten anode. X-rays are produced precisely where the electron beam strikes the anode, forming a collimated fan beam that effectively rotates without mechanical motion. This innovative approach enables ultra-fast acquisition times, less than 50 milliseconds, with complete scans in 10-20 milliseconds. EBSCT was specifically designed for ultrafast scans to freeze cardiac motion, making it invaluable for cardiac CT applications.
- Unique for its integral X-ray source design, without a conventional X-ray tube.
- Uses a high-energy electron beam swept along a semicircular tungsten anode.
- X-rays are produced where the electron beam hits the anode, creating a rotating fan beam with no moving parts.
- Achieves ultra-fast scan times (<50ms acquisition, 10-20ms complete scan).
- Primarily designed for ultrafast cardiac imaging to freeze motion.
Frequently Asked Questions
What was the primary limitation of first-generation CT scanners?
First-generation CT scanners were limited by extremely slow scan times, often taking 25-30 minutes for a full study, and were initially restricted to head-only scans due to heat generation.
How did second-generation CT scanners improve upon the first?
Second-generation scanners introduced a fan beam and multiple detectors, significantly reducing scan times to about 20 seconds per slice. This allowed for scanning a wider range of body parts beyond just the head.
What is the main advantage of fifth-generation (EBSCT) scanners?
Fifth-generation EBSCT scanners offer ultra-fast acquisition times, under 50 milliseconds, by using an electron beam to generate X-rays without mechanical rotation. This is ideal for freezing cardiac motion.
