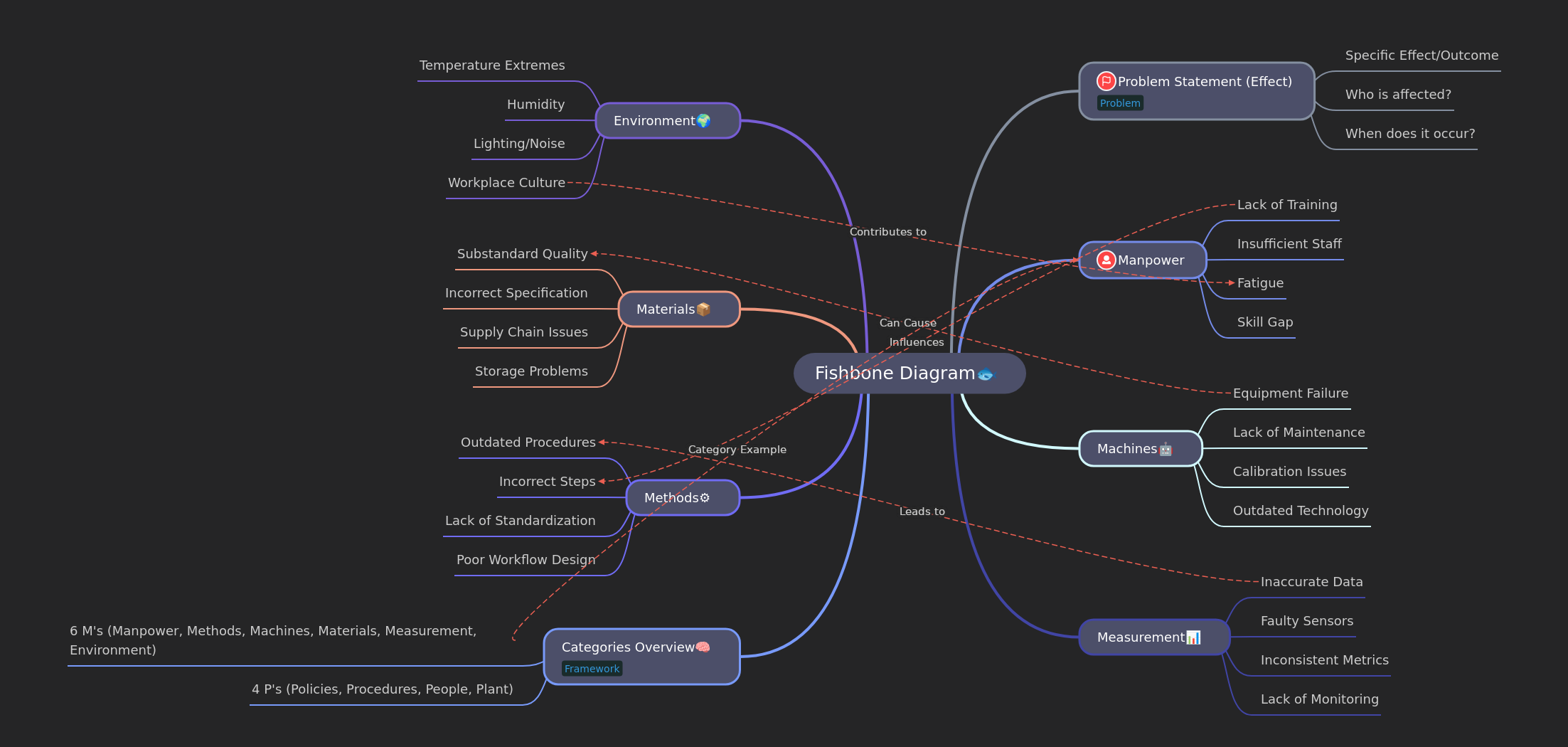

Fishbone Diagram: Root Cause Analysis Explained
A Fishbone Diagram, also known as an Ishikawa or Cause and Effect Diagram, is a visual tool for identifying and categorizing potential causes of a specific problem. It helps teams systematically explore contributing factors, organizing them into main categories like Manpower, Machines, Methods, Materials, Measurement, and Environment, to pinpoint the root cause for effective problem-solving.
Key Takeaways
Visual tool for systematic root cause analysis.
Categorizes potential causes into main branches.
Facilitates structured problem-solving approach.
Identifies specific contributing factors clearly.
Enhances team collaboration in investigations.
What is the 'Problem Statement' in a Fishbone Diagram?
The 'Problem Statement' in a Fishbone Diagram defines the specific effect or issue requiring analysis. Positioned at the "head" of the fish, it clearly articulates the undesirable outcome, ensuring all participants focus on the same challenge. This initial step is crucial for effective root cause analysis, as a well-defined problem guides the subsequent identification of potential causes. Clarifying who is affected and when the problem occurs provides vital context for deeper investigation, setting a solid foundation for structured problem-solving efforts.
- Define specific effect or outcome.
- Identify affected individuals.
- Determine occurrence timing.
How does 'Manpower' contribute to problems in a Fishbone Diagram?
Manpower, or People, represents human factors that can contribute to a problem. This category explores issues related to the skills, training, availability, and well-being of individuals involved. Human error, lack of experience, or insufficient staffing significantly impact outcomes. Analyzing manpower-related causes helps organizations address personnel deficiencies, improve training programs, and ensure adequate resources. It highlights the critical role human elements play in operational success and problem prevention, leading to targeted improvements.
- Lack of training.
- Insufficient staff.
- Fatigue issues.
- Skill gaps.
What role do 'Machines' play in problem identification?
The 'Machines' category focuses on equipment, tools, and technology potentially causing or contributing to a problem. This includes issues related to machinery performance, maintenance, calibration, and technological obsolescence. Equipment malfunctions, breakdowns, or outdated systems directly lead to defects, delays, or safety concerns. Investigating this category helps identify needs for equipment upgrades, improved maintenance schedules, or better operational procedures, ensuring reliable performance and preventing future issues.
- Equipment failure.
- Lack of maintenance.
- Calibration issues.
- Outdated technology.
Why is 'Measurement' a critical factor in cause analysis?
Measurement refers to data collection, analysis, and monitoring processes used to assess performance and quality. Problems arise from inaccurate data, faulty sensors, inconsistent metrics, or a lack of monitoring. If measurements are unreliable, accurately identifying problems, tracking progress, or making informed decisions becomes difficult. Addressing measurement issues ensures trustworthy data for analysis, leading to more precise problem identification and effective solutions, thereby improving overall decision-making.
- Inaccurate data.
- Faulty sensors.
- Inconsistent metrics.
- Lack of monitoring.
What are the common frameworks for Fishbone Diagram categories?
The 'Categories Overview' branch introduces standard frameworks for structuring main causes in a Fishbone Diagram, ensuring comprehensive analysis. The "6 M's" is most common: Manpower, Methods, Machines, Materials, Measurement, and Environment. Another useful framework is the "4 P's": Policies, Procedures, People, and Plant. These frameworks provide systematic starting points for brainstorming potential root causes, helping teams cover all relevant areas and avoid overlooking critical factors in their investigation.
- 6 M's: Manpower, Methods, Machines, Materials, Measurement, Environment.
- 4 P's: Policies, Procedures, People, Plant.
How do 'Methods' impact problem occurrence?
Methods refer to the processes, procedures, and workflows used to perform tasks. Issues in this category include outdated procedures, incorrect steps, lack of standardization, or poorly designed workflows. Inefficient or flawed methods lead to errors, inconsistencies, and reduced productivity, directly contributing to the problem statement. Analyzing methods helps streamline operations, implement best practices, and ensure tasks are performed correctly and consistently, improving overall process efficiency and quality control.
- Outdated procedures.
- Incorrect steps.
- Lack of standardization.
- Poor workflow design.
What role do 'Materials' play in problem analysis?
Materials encompass all raw materials, components, and supplies used in a process or product. Problems in this category can stem from substandard quality, incorrect specifications, supply chain disruptions, or improper storage. Defective or unsuitable materials directly lead to product failures, waste, or production delays. Examining material-related causes helps ensure that only high-quality, appropriate materials are sourced, handled, and stored correctly, minimizing their contribution to overall problems and improving product integrity.
- Substandard quality.
- Incorrect specification.
- Supply chain issues.
- Storage problems.
How does the 'Environment' influence problem causes?
The 'Environment' category considers external and internal conditions affecting a process or outcome. This includes physical factors like temperature, humidity, lighting, and noise, as well as intangible aspects like workplace culture. Unfavorable environmental conditions impact equipment performance, material integrity, and human productivity or morale. Addressing environmental factors helps create optimal working conditions, ensuring external influences do not inadvertently contribute to the problem being analyzed, fostering better outcomes.
- Temperature extremes.
- Humidity levels.
- Lighting/noise.
- Workplace culture.
Frequently Asked Questions
What is the primary purpose of a Fishbone Diagram?
Its primary purpose is to visually identify, explore, and categorize all potential root causes contributing to a specific problem or effect, facilitating systematic problem-solving.
Who developed the Fishbone Diagram?
The Fishbone Diagram was developed by Kaoru Ishikawa in the 1960s, hence it is also known as the Ishikawa Diagram. It's a key tool in quality management.
What are the "6 M's" in a Fishbone Diagram?
The "6 M's" are common categories for potential causes: Manpower, Methods, Machines, Materials, Measurement, and Environment. They provide a comprehensive framework.
When should I use a Fishbone Diagram?
Use it when a problem's root cause is unclear, when a team needs to brainstorm potential causes, or when a structured approach to problem analysis is required.
Can a Fishbone Diagram be used for any type of problem?
Yes, it is a versatile tool applicable to various industries and problem types, from manufacturing defects to service delivery issues, helping uncover underlying causes.
