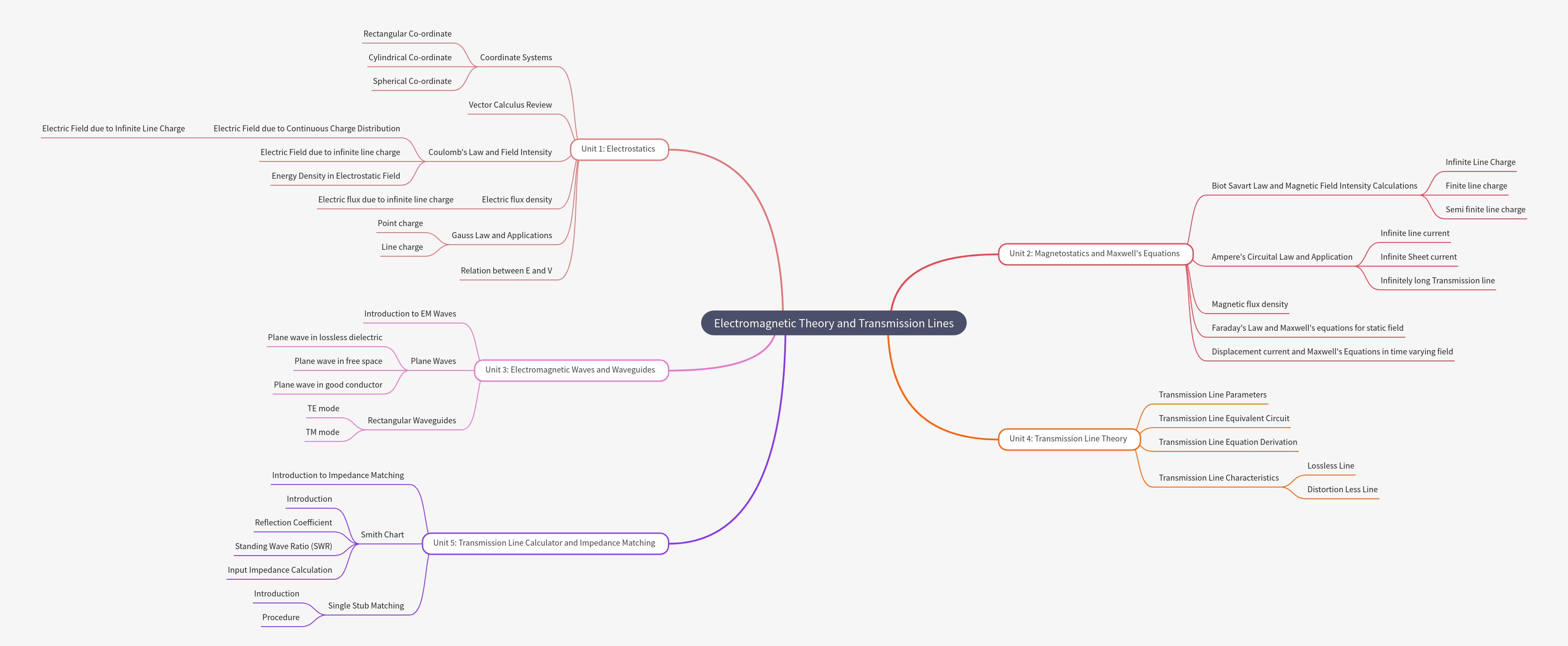

Featured Mind map

Electromagnetic Theory and Transmission Lines Explained

Electromagnetic Theory and Transmission Lines provides a comprehensive understanding of electric and magnetic fields, their interactions, and the propagation of electromagnetic waves. It covers foundational principles like electrostatics, magnetostatics, and Maxwell's equations, extending to the practical aspects of transmission line behavior, including crucial impedance matching techniques. This knowledge is vital for designing and analyzing communication and power systems.

Key Takeaways

1

Electrostatics studies stationary electric charges and their fields.

2

Magnetostatics analyzes steady magnetic fields from currents.

3

Maxwell's equations unify all electromagnetic phenomena.

4

EM waves transmit energy through space, forming basis of communication.

5

Transmission lines guide signals, requiring precise impedance matching.

Electromagnetic Theory and Transmission Lines Explained

What is Electrostatics and its fundamental principles?

Electrostatics is the foundational branch of electromagnetism dedicated to studying electric charges at rest and the static electric fields they generate. This field is essential for understanding phenomena ranging from lightning to the operation of capacitors and various electronic components. It establishes how electric forces interact between charged particles and how potential differences arise across space. Mastering various coordinate systems—rectangular, cylindrical, and spherical—is crucial for accurately describing and solving complex electrostatic problems, providing a robust mathematical framework for vector field analysis in three dimensions.

  • Coordinate Systems: Rectangular, Cylindrical, Spherical provide essential spatial context for field analysis.
  • Vector Calculus Review: Fundamental mathematical tools for analyzing electric field properties and potentials.
  • Coulomb's Law and Field Intensity: Quantify the force between point charges and define electric field strength.
  • Electric flux density: A measure of the electric field's flow through a given surface, crucial for Gauss's Law.
  • Gauss Law and Applications: Simplifies electric field calculations for highly symmetric charge distributions.
  • Relation between E and V: Establishes the direct connection between electric field intensity and electric potential.

How do Magnetostatics and Maxwell's Equations describe magnetic phenomena?

Magnetostatics delves into the study of steady magnetic fields produced by constant electric currents, forming the basis for understanding the operation of motors, generators, and magnetic storage devices. The Biot-Savart Law allows for the precise calculation of magnetic field intensity from various current distributions, while Ampere's Circuital Law offers a powerful, simplified approach for highly symmetric current configurations. Ultimately, Maxwell's equations synthesize these static field concepts with time-varying phenomena, introducing the critical concept of displacement current, which explains how changing electric fields produce magnetic fields, thereby unifying electricity and magnetism into a single coherent theory.

  • Biot Savart Law and Magnetic Field Intensity Calculations: Determine magnetic fields generated by current elements.
  • Ampere's Circuital Law and Application: Simplifies magnetic field computations for symmetric current paths.
  • Magnetic flux density: Represents the strength and direction of a magnetic field, analogous to electric flux density.
  • Faraday's Law and Maxwell's equations for static field: Describe electromagnetic induction and static field relationships.
  • Displacement current and Maxwell's Equations in time varying field: Crucial for understanding dynamic electromagnetic wave propagation.

What are Electromagnetic Waves and how do Waveguides transmit them?

Electromagnetic (EM) waves are fundamental carriers of energy and information, consisting of oscillating electric and magnetic fields propagating perpendicularly through space. They underpin all wireless communication technologies, from radio and television to radar and visible light. Understanding plane waves is key to analyzing EM wave behavior in diverse environments, including lossless dielectrics, free space, and conductive materials, revealing how speed, wavelength, and attenuation vary. Waveguides, particularly rectangular waveguides, are specialized metallic structures designed to efficiently confine and direct these waves, supporting distinct propagation modes like Transverse Electric (TE) and Transverse Magnetic (TM) for specific high-frequency applications.

  • Introduction to EM Waves: Fundamental carriers of energy and information across the spectrum.
  • Plane Waves: Analyze EM wave behavior in various media, including lossless, free space, and conductors.
  • Rectangular Waveguides: Guide EM waves efficiently, supporting specific TE and TM propagation modes.

What is Transmission Line Theory and its key characteristics?

Transmission line theory is crucial for analyzing electrical signal propagation over conductors, especially at high frequencies where conductor length becomes comparable to the signal wavelength. It treats lines as distributed parameter circuits, considering inductance, capacitance, resistance, and conductance per unit length, which significantly impact signal integrity and power transfer efficiency. This theory derives fundamental equations describing voltage and current variations along the line, providing insights into wave propagation. Understanding characteristics like lossless and distortionless lines is vital for designing systems that minimize signal degradation and ensure efficient power delivery in high-frequency communication and power applications.

  • Transmission Line Parameters: Define the electrical properties (R, L, C, G) per unit length.
  • Transmission Line Equivalent Circuit: Models the distributed characteristics of a line for analysis.
  • Transmission Line Equation Derivation: Describes the behavior of voltage and current waves along the line.
  • Transmission Line Characteristics: Explores ideal (Lossless) and practical (Distortion Less) line behaviors.

Why is Impedance Matching crucial in Transmission Lines and how is it achieved?

Impedance matching is a critical technique in transmission line design, ensuring maximum power transfer from a source to a load while minimizing signal reflections and standing waves. Mismatched impedances lead to significant power loss, signal distortion, and potential damage to sensitive components. The Smith Chart serves as an invaluable graphical tool, simplifying complex impedance calculations, reflection coefficient analysis, and standing wave ratio determination, making it indispensable for RF engineers. Practical methods like single stub matching provide systematic procedures to achieve optimal impedance conditions, enhancing system efficiency and signal quality across various high-frequency applications.

  • Introduction to Impedance Matching: Maximizes power transfer and minimizes signal reflections.
  • Smith Chart: An essential graphical tool for complex impedance analysis and matching network design.
  • Single Stub Matching: A practical and widely used method for achieving impedance match on transmission lines.

Frequently Asked Questions

Q

What is the primary focus of electrostatics?

A

Electrostatics studies electric charges at rest and the static electric fields they produce. It covers fundamental laws like Coulomb's and Gauss's for analyzing charge interactions and field distributions in various coordinate systems.

Q

How do Maxwell's equations relate to electromagnetic theory?

A

Maxwell's equations are a set of four fundamental equations that describe how electric and magnetic fields are generated and altered by each other and by charges and currents. They unify all classical electromagnetic phenomena, including light.

Q

Why is impedance matching important in transmission lines?

A

Impedance matching is crucial to prevent signal reflections and maximize power transfer from a source to a load. Mismatched impedances cause power loss, signal distortion, and can damage components, impacting system performance.
