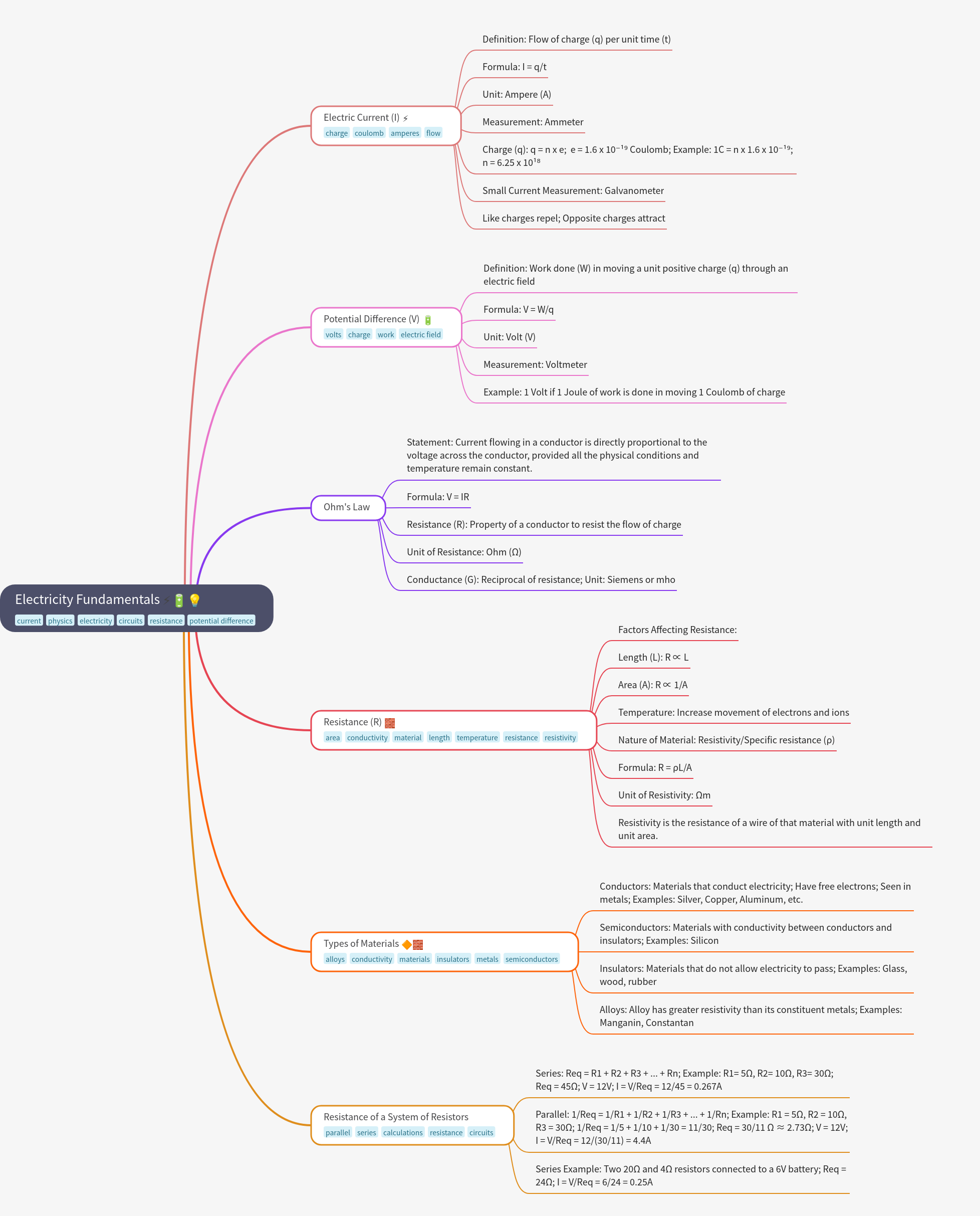

Featured Mind Map

Electricity Fundamentals: Concepts & Applications

Electricity fundamentals encompass the basic principles governing electric charge and its movement. This includes understanding electric current as the flow of charge, potential difference as the work done per unit charge, and resistance as the opposition to current flow. Key concepts like Ohm's Law, factors affecting resistance, and how different materials conduct electricity are essential for comprehending electrical circuits and their behavior.

Key Takeaways

1

Electric current is the flow of charge per unit time.

2

Potential difference drives current, defined as work per unit charge.

3

Ohm's Law describes the relationship between voltage, current, and resistance.

4

Material properties, length, area, and temperature affect resistance.

5

Resistors combine in series or parallel, impacting total circuit resistance.

Electricity Fundamentals: Concepts & Applications

What is Electric Current and How is it Measured?

Electric current is fundamentally the flow of electric charge through a conductor over a specific period. It quantifies how much charge passes a point in a circuit per unit of time. Understanding current is crucial for analyzing electrical systems, as it represents the actual movement of electrons or ions. This flow is essential for powering devices and transmitting energy, forming the basis of all electrical phenomena. Current is measured using specialized instruments to ensure circuits operate safely and efficiently.

  • Definition: Flow of charge (q) per unit time (t).
  • Formula: I = q/t.
  • Unit: Ampere (A).
  • Measurement: Ammeter for general current, Galvanometer for small currents.
  • Charge (q): q = n x e, where e = 1.6 x 10⁻¹⁹ Coulomb.
  • Like charges repel; opposite charges attract.

What is Potential Difference and How is it Calculated?

Potential difference, also known as voltage, represents the work done per unit positive charge to move it through an electric field from one point to another. It is the driving force that causes electric current to flow in a circuit, analogous to pressure in a water pipe. A higher potential difference implies more energy available to move charges, which is vital for understanding how electrical energy is transferred and utilized in various applications. Measuring potential difference helps in designing and troubleshooting electrical systems effectively.

  • Definition: Work done (W) in moving a unit positive charge (q) through an electric field.
  • Formula: V = W/q.
  • Unit: Volt (V).
  • Measurement: Voltmeter.
  • Example: 1 Volt if 1 Joule of work is done in moving 1 Coulomb of charge.

What is Ohm's Law and How Does it Relate Voltage, Current, and Resistance?

Ohm's Law is a fundamental principle in electrical circuits, stating that the current flowing through a conductor is directly proportional to the voltage across it, provided physical conditions and temperature remain constant. This law establishes a critical relationship between voltage, current, and resistance, allowing engineers and technicians to predict and control circuit behavior. It is widely applied in designing and analyzing electronic components and systems, ensuring efficient and safe operation. Understanding Ohm's Law is foundational for anyone working with electricity.

  • Statement: Current is directly proportional to voltage across a conductor, given constant physical conditions.
  • Formula: V = IR.
  • Resistance (R): Property of a conductor to resist the flow of charge.
  • Unit of Resistance: Ohm (Ω).
  • Conductance (G): Reciprocal of resistance; Unit: Siemens or mho.

What Factors Influence Electrical Resistance in a Material?

Electrical resistance is a material's opposition to the flow of electric current, converting electrical energy into heat. Several factors determine a conductor's resistance, making it a crucial consideration in circuit design and material selection. Understanding these influences allows for the optimization of electrical pathways, minimizing energy loss and ensuring efficient power transmission. Engineers leverage this knowledge to select appropriate materials and dimensions for wires and components, balancing performance with cost and safety.

  • Factors Affecting Resistance:
  • Length (L): Resistance is directly proportional to length (R ∝ L).
  • Area (A): Resistance is inversely proportional to cross-sectional area (R ∝ 1/A).
  • Temperature: Increased temperature typically increases electron and ion movement, raising resistance.
  • Nature of Material: Defined by resistivity/specific resistance (ρ).
  • Formula: R = ρL/A.
  • Unit of Resistivity: Ohm-meter (Ωm).
  • Resistivity is the resistance of a wire of that material with unit length and unit area.

What are the Different Types of Electrical Materials and Their Properties?

Materials are categorized based on their ability to conduct electricity, which is determined by the availability of free electrons. This classification is essential for selecting the right components in electrical and electronic applications, from simple wiring to complex semiconductor devices. Each material type serves specific purposes, influencing circuit performance, efficiency, and safety. Understanding these distinctions helps in designing systems that effectively manage electrical flow and energy transfer.

  • Conductors: Materials that conduct electricity due to free electrons (e.g., Silver, Copper, Aluminum).
  • Semiconductors: Materials with conductivity between conductors and insulators (e.g., Silicon).
  • Insulators: Materials that do not allow electricity to pass (e.g., Glass, wood, rubber).
  • Alloys: Have greater resistivity than their constituent metals (e.g., Manganin, Constantan).

How is Total Resistance Calculated in Series and Parallel Circuits?

When multiple resistors are connected in a circuit, their combined effect on the total current flow depends on their arrangement. Understanding how to calculate equivalent resistance for series and parallel configurations is fundamental for circuit analysis and design. This knowledge allows for predicting current and voltage distribution, optimizing power consumption, and troubleshooting circuit malfunctions. Proper calculation ensures that electrical systems operate as intended, preventing overload and maximizing efficiency.

  • Series: Equivalent resistance (Req) is the sum of individual resistances (Req = R1 + R2 + ... + Rn).
  • Parallel: The reciprocal of equivalent resistance is the sum of the reciprocals of individual resistances (1/Req = 1/R1 + 1/R2 + ... + 1/Rn).
  • Series Example: Two 20Ω and 4Ω resistors connected to a 6V battery yield Req = 24Ω, I = 0.25A.

Frequently Asked Questions

Q

What is the primary difference between current and voltage?

A

Current is the flow rate of electric charge, measured in Amperes. Voltage, or potential difference, is the electrical "pressure" or work done per unit charge, measured in Volts, that drives the current.

Q

Why is Ohm's Law important in electrical engineering?

A

Ohm's Law (V=IR) is crucial because it defines the fundamental relationship between voltage, current, and resistance in a circuit. It allows engineers to predict circuit behavior, design components, and troubleshoot electrical systems effectively.

Q

How do conductors, semiconductors, and insulators differ?

A

Conductors allow electricity to flow easily due to free electrons. Insulators block current flow. Semiconductors have conductivity between these two, allowing controlled current flow, making them vital for electronic devices.
