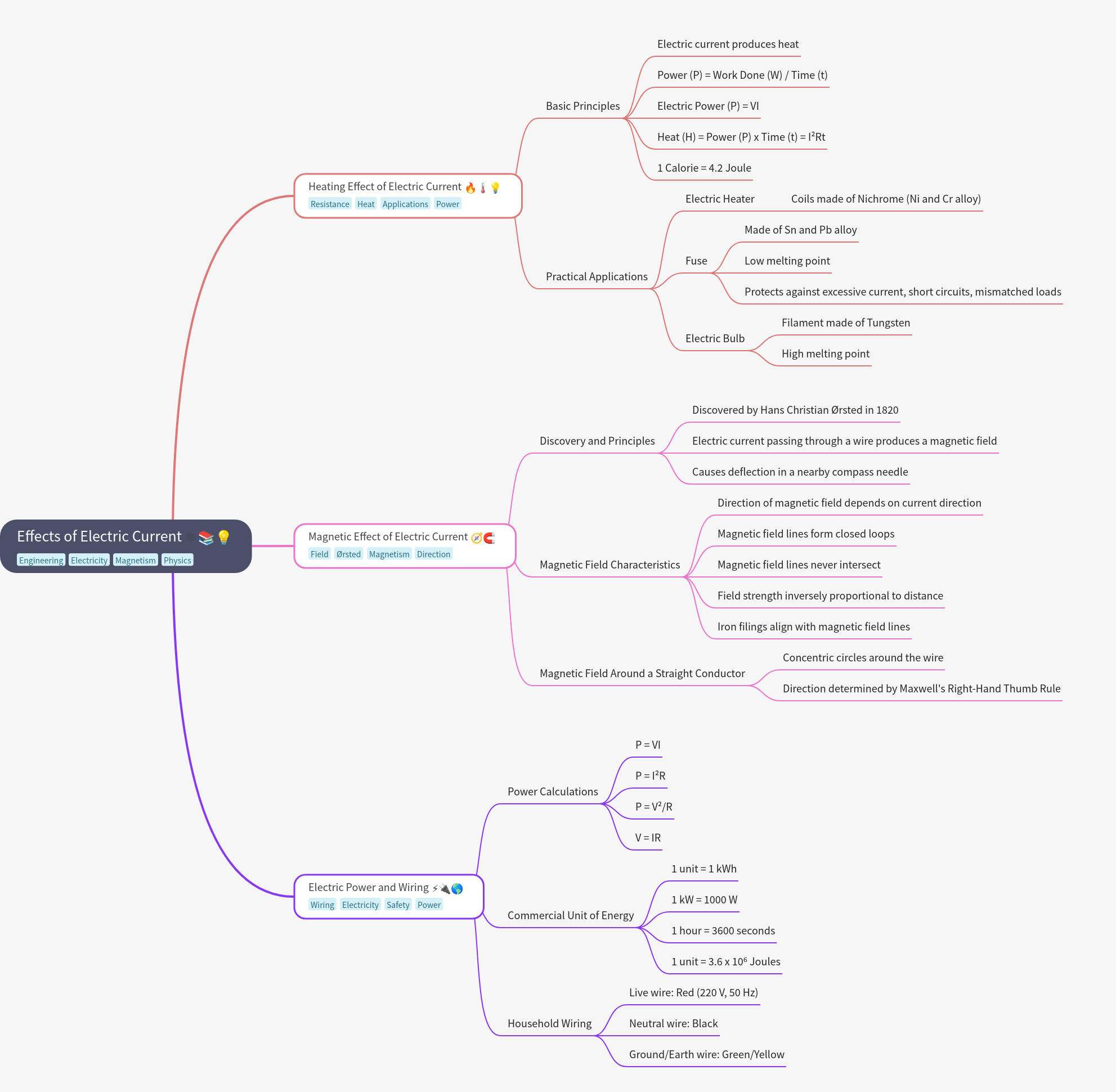

Effects of Electric Current Explained
Electric current produces various fundamental effects, primarily heating and magnetic phenomena, which are crucial for numerous modern technologies. The heating effect is utilized in common appliances like electric heaters, fuses, and light bulbs, converting electrical energy into thermal energy. Concurrently, the magnetic effect forms the basis of essential devices such as motors and generators. Understanding these principles is vital for the safe, efficient design and operation of electrical systems and devices.
Key Takeaways
Electric current generates heat due to resistance, quantified by Joule's Law (H=I²Rt).
The heating effect is practically applied in electric heaters, fuses, and incandescent bulbs.
Electric current also produces a magnetic field, a discovery made by Hans Christian Ørsted.
Magnetic field characteristics include closed loops and direction determined by current flow.
Understanding power calculations and safe household wiring is essential for electrical safety.
How does electric current produce heat?
Electric current generates heat when it flows through a conductor due to the resistance encountered by the moving electrons, a phenomenon known as the heating effect of electric current or Joule heating. This energy conversion is quantified by the formula Heat (H) = I²Rt, where I is the current, R is the resistance, and t is the time, indicating that the heat produced is directly proportional to the square of the current, the resistance, and the duration of current flow. Understanding power as work done over time (P = W/t) and electric power as the product of voltage and current (P = VI) provides the foundational principles for calculating this thermal energy. This fundamental effect finds widespread practical applications in everyday devices. For instance, electric heaters and incandescent bulbs rely on this principle, utilizing materials like nichrome for heater coils and tungsten for bulb filaments, chosen for their high resistance and melting points to efficiently convert electrical energy into heat and light. Fuses, made from a low-melting point tin and lead alloy, also leverage the heating effect to protect circuits by melting and breaking the circuit when excessive current flows, safeguarding against short circuits and mismatched loads.
- Fundamental principles governing how electric current generates heat, including power, work, time, and the specific formula for heat (H=I²Rt), along with the conversion factor for calories to joules.
- Diverse practical applications of the heating effect, such as the design and function of electric heaters with nichrome coils, safety fuses made of Sn and Pb alloy, and incandescent light bulbs utilizing tungsten filaments.
What is the magnetic effect of electric current?
The magnetic effect of electric current refers to the phenomenon where an electric current flowing through a conductor produces a magnetic field around it. This pivotal discovery was made by Hans Christian Ørsted in 1820, who observed that a compass needle deflected when placed near a current-carrying wire, demonstrating the direct relationship between electricity and magnetism. The characteristics of this induced magnetic field are crucial for its applications; its direction depends directly on the direction of the current flow, and the magnetic field lines form continuous closed loops that never intersect each other. Furthermore, the strength of the magnetic field is inversely proportional to the distance from the conductor. Iron filings, when sprinkled around a current-carrying wire, align themselves along these magnetic field lines, visually demonstrating their pattern. For a straight conductor, the magnetic field lines form concentric circles around the wire, and their precise direction can be determined using Maxwell's Right-Hand Thumb Rule, where if the thumb points in the direction of the current, the curled fingers indicate the direction of the magnetic field.
- The pivotal discovery by Hans Christian Ørsted in 1820, establishing that electric current inherently produces a magnetic field, evidenced by the deflection of a nearby compass needle.
- Key characteristics of magnetic fields generated by current, including how their direction depends on current flow, their formation as closed loops that never intersect, and the inverse relationship between field strength and distance from the conductor.
- Specific properties of the magnetic field surrounding a straight conductor, which forms concentric circles, with its precise direction determined by applying Maxwell's Right-Hand Thumb Rule for accurate prediction.
How is electric power calculated and safely wired?
Electric power, the rate at which electrical energy is transferred, is fundamental to understanding energy consumption and circuit design. It can be calculated using several key formulas: P = VI (Power equals Voltage times Current), P = I²R (Power equals Current squared times Resistance), and P = V²/R (Power equals Voltage squared divided by Resistance). These equations, alongside Ohm's Law (V = IR), are essential for analyzing and designing electrical circuits. For practical energy measurement, especially in commercial and residential settings, the kilowatt-hour (kWh) serves as the commercial unit of energy. One unit, or 1 kWh, represents the energy consumed by a 1-kilowatt appliance operating for one hour, which translates to 3.6 x 10⁶ Joules. Household wiring systems are designed with specific color codes for safety and functionality: the live wire is typically red and carries the main voltage (e.g., 220 V, 50 Hz), the neutral wire is black and completes the circuit, and the ground or earth wire, colored green or yellow, provides a safety path for current in case of a fault, preventing electric shock and ensuring appliance safety.
- Essential formulas for calculating electric power, including P=VI, P=I²R, and P=V²/R, alongside Ohm's Law (V=IR), which are fundamental for understanding electrical circuit behavior and energy consumption.
- The definition and conversion of the commercial unit of energy, the kilowatt-hour (kWh), explaining its relationship to watts, hours, and its equivalent value in joules (3.6 x 10⁶ Joules) for practical energy measurement.
- The standardized color coding and purpose of live (red), neutral (black), and ground/earth (green/yellow) wires in household electrical systems, crucial for ensuring safety and proper circuit operation.
Frequently Asked Questions
What is the heating effect of electric current?
The heating effect occurs when electric current flows through a conductor with resistance, generating heat. This principle, known as Joule heating (H=I²Rt), is utilized in devices like electric heaters, fuses, and light bulbs.
Who discovered the magnetic effect of electric current?
Hans Christian Ørsted discovered in 1820 that an electric current creates a magnetic field around the conductor. This causes a nearby compass needle to deflect, demonstrating the link between electricity and magnetism.
What are the standard colors for household wiring?
Household wiring typically uses red for the live wire (carrying voltage), black for the neutral wire (completing the circuit), and green or yellow for the ground/earth wire, which provides safety.
