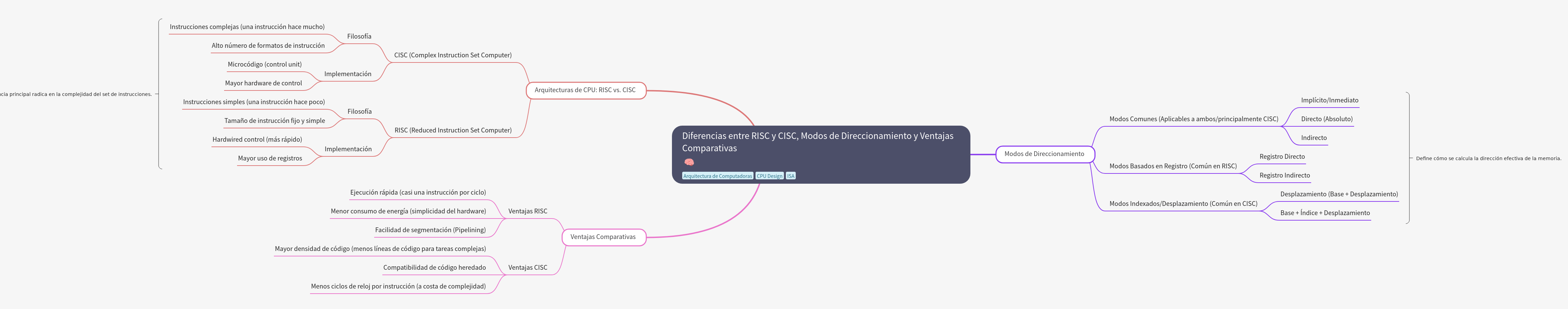

RISC vs. CISC: Architectures, Addressing Modes, and Benefits
RISC (Reduced Instruction Set Computer) and CISC (Complex Instruction Set Computer) are distinct CPU architectures defined by their instruction sets. RISC uses simple, fixed-length instructions for faster execution and lower power, relying on software complexity. CISC uses complex, variable-length instructions, achieving high code density but requiring more complex hardware control via microcode. The choice between them impacts performance, energy use, and compiler design significantly.
Key Takeaways
RISC prioritizes simple instructions and hardwired control for maximum execution speed.
CISC uses complex instructions, reducing code size but increasing hardware complexity.
Addressing modes define how the CPU calculates the effective memory location of data.
RISC excels in energy efficiency, facilitating efficient instruction pipelining.
CISC maintains strong compatibility with legacy code and offers superior code density.
What are the core differences between RISC and CISC CPU architectures?
CISC (Complex Instruction Set Computer) and RISC (Reduced Instruction Set Computer) represent two fundamental approaches to CPU design, primarily differing in the complexity and size of their instruction sets. CISC aims to execute complex tasks using a single instruction, often requiring microcode for implementation and resulting in variable instruction formats. Conversely, RISC focuses on simplicity, utilizing a small set of fixed-length instructions that execute rapidly, often within a single clock cycle, relying on hardwired control for speed. This distinction impacts performance, power consumption, and compiler design, with modern systems often employing hybrid designs to leverage the strengths of both architectures effectively.
- CISC (Complex Instruction Set Computer) Philosophy: This approach is characterized by complex instructions where a single command performs multiple operations, alongside a high number of instruction formats to accommodate diverse operational needs.
- CISC (Complex Instruction Set Computer) Implementation: Execution relies heavily on microcode within the control unit to interpret complex instructions, necessitating greater and more intricate control hardware within the processor.
- RISC (Reduced Instruction Set Computer) Philosophy: The core idea is to use simple instructions, ensuring that each command performs only a minimal task, coupled with a fixed and simple instruction size for predictable processing.
- RISC (Reduced Instruction Set Computer) Implementation: Control is managed through faster hardwired logic rather than microcode, and the architecture is designed for a greater utilization of internal registers to minimize memory access latency.
How do CPUs use addressing modes to access memory locations?
Addressing modes are crucial mechanisms that define precisely how a Central Processing Unit (CPU) calculates the effective memory address of an operand during instruction execution, determining where the required data resides. These modes dictate whether the operand is contained directly within the instruction, stored in a register, or located in memory relative to a base or index value. While CISC architectures typically support a wide variety of complex modes to simplify assembly programming and reduce code size, RISC architectures favor simpler, register-based modes to maintain fast, single-cycle execution times, shifting the burden of complexity onto the compiler.
- Common Addressing Modes (Applicable to both/primarily CISC): These include Implicit or Immediate modes, where the operand is part of the instruction itself; Direct (Absolute) mode, where the full memory address is specified; and Indirect mode, where the instruction points to a memory location that holds the actual address.
- Register-Based Addressing Modes (Common in RISC): These modes prioritize speed by keeping data within the CPU's internal registers, utilizing Register Direct addressing, where the register holds the operand, and Register Indirect addressing, where the register holds the memory address of the operand.
- Indexed/Displacement Addressing Modes (Common in CISC): These complex modes facilitate array and structure access, including Displacement mode (Base + Displacement), which calculates the address relative to a base register, and the highly flexible Base + Index + Displacement mode.
What are the comparative advantages of RISC versus CISC architectures?
The comparative advantages of RISC and CISC stem directly from their opposing design philosophies, leading to distinct performance and efficiency trade-offs. RISC excels in performance metrics like execution speed and energy efficiency due to its streamlined instruction set, which facilitates highly efficient instruction pipelining and requires simpler, faster hardware. CISC, however, offers significant advantages in code density, meaning fewer lines of code are needed for complex tasks, and maintains strong compatibility with legacy software, which is critical for established platforms. Modern processors often employ hybrid designs, using a RISC core to execute complex CISC instructions translated via microcode, effectively blending the benefits of both approaches to optimize for both speed and compatibility.
- RISC Advantages: These architectures offer rapid execution, often achieving nearly one instruction per clock cycle, coupled with significantly lower energy consumption due to the inherent simplicity of the required hardware, and a greater ease of segmentation (Pipelining) for highly efficient parallel processing of instructions.
- CISC Advantages: Key benefits include a higher density of code, requiring substantially fewer lines of code to accomplish complex operations, robust compatibility with inherited code bases and operating systems, and the ability to execute complex tasks in fewer clock cycles per instruction, albeit at the expense of overall hardware complexity and design effort.
Frequently Asked Questions
What is the primary philosophical difference between RISC and CISC?
RISC philosophy centers on simple, fixed-length instructions executed quickly by hardwired control logic. CISC uses complex, variable-length instructions that perform multiple steps, relying on microcode interpretation and greater hardware complexity.
Why does RISC generally consume less power than CISC?
RISC architectures use simpler hardware and fewer transistors because the instruction set is reduced and streamlined. This inherent simplicity leads directly to lower energy consumption and better thermal management, making it ideal for mobile devices.
What is the purpose of addressing modes in CPU architecture?
Addressing modes define the rules for calculating the effective memory address of an operand. They determine whether the data is accessed directly, indirectly, or relative to a register or base address, influencing instruction efficiency and complexity.
