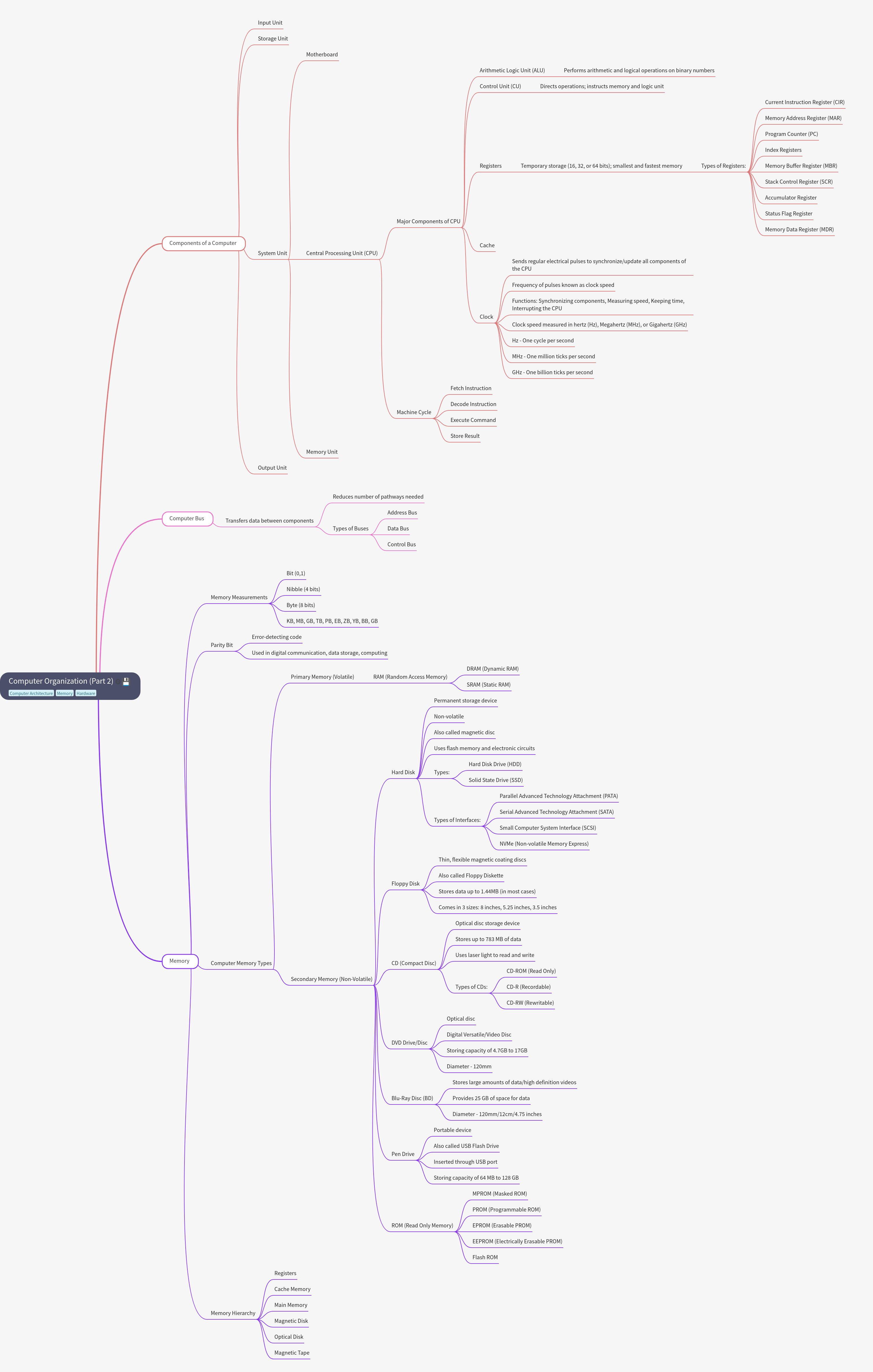

Computer Organization: Components, Buses, and Memory
Computer organization details how hardware components work together to form a functional system. It covers essential parts like input/output units, storage, and the system unit housing the CPU and memory. Understanding this structure reveals how data flows, is processed, and stored, from the smallest bits to large storage devices, ensuring efficient computer operation and performance.
Key Takeaways
Computers comprise input, storage, system, and output units.
The CPU's ALU, CU, and registers execute instructions efficiently.
Buses facilitate crucial data transfer between all computer components.
Memory is measured in bits, bytes, and larger hierarchical units.
Primary and secondary memory types serve distinct storage needs.
What are the fundamental components of a computer system?
A computer system fundamentally comprises several interconnected components that work in unison to process information and interact with users. These core units ensure data input, processing, storage, and output are handled efficiently. Understanding each component's role is crucial for comprehending how a computer operates, from receiving raw data to presenting meaningful results. The system unit, in particular, houses the central processing unit and memory, which are vital for all computational tasks and data management.
- Input Unit: Captures data and instructions from external sources.
- Storage Unit: Retains data and instructions for processing and future use.
- System Unit: The central enclosure housing critical processing components.
- Output Unit: Presents processed information to the user in a readable format.
What are the major components and functions of the Central Processing Unit (CPU)?
The Central Processing Unit, often called the computer's brain, is responsible for executing instructions and performing calculations. It consists of several major components that collaborate to manage data flow, perform arithmetic and logical operations, and temporarily store information. The CPU's efficiency directly impacts the computer's overall performance, as it orchestrates all computational activities and ensures synchronized operations across the system.
- Motherboard: The main circuit board connecting all computer components.
- Central Processing Unit (CPU): The primary component that executes instructions.
- Major Components of CPU:
- Arithmetic Logic Unit (ALU): Performs arithmetic and logical operations on binary numbers.
- Control Unit (CU): Directs operations and instructs memory and the logic unit.
- Registers: Temporary storage locations (16, 32, or 64 bits); the smallest and fastest memory within the CPU.
- Types of Registers: Current Instruction Register (CIR), Memory Address Register (MAR), Program Counter (PC), Index Registers, Memory Buffer Register (MBR), Stack Control Register (SCR), Accumulator Register, Status Flag Register, Memory Data Register (MDR).
- Cache: High-speed memory that stores frequently accessed data for quicker retrieval by the CPU.
- Clock: Sends regular electrical pulses to synchronize and update all components of the CPU.
- Functions of Clock: Synchronizing components, Measuring speed, Keeping time, Interrupting the CPU.
- Clock speed measured in hertz (Hz), Megahertz (MHz), or Gigahertz (GHz).
- Hz: Represents one cycle per second.
- MHz: Represents one million ticks per second.
- GHz: Represents one billion ticks per second.
- Machine Cycle: The sequence of steps a CPU takes to execute a single instruction.
- Fetch Instruction: Retrieves the instruction from memory.
- Decode Instruction: Interprets the instruction to understand the operation.
- Execute Command: Performs the required operation or calculation.
- Store Result: Writes the outcome of the operation back to memory.
- Memory Unit: Stores data and instructions that the CPU needs to access quickly.
How do computer buses facilitate data transfer within a system?
Computer buses are crucial communication pathways that transfer data, addresses, and control signals between various components of a computer system. They significantly reduce the number of individual connections required, streamlining the internal architecture and enabling efficient communication. Buses ensure that the CPU, memory, and peripheral devices can exchange information rapidly and accurately, which is fundamental for the computer's overall functionality and performance.
- Transfers data between various computer components.
- Reduces the number of individual pathways needed for communication.
- Types of Buses:
- Address Bus: Carries memory addresses from the CPU to other components.
- Data Bus: Carries actual data between the CPU, memory, and input/output devices.
- Control Bus: Carries control signals from the CPU to manage and coordinate activities.
What are the different types and measurements of computer memory?
Computer memory is essential for storing data and instructions, ranging from temporary, high-speed storage to permanent, long-term solutions. Memory is measured in various units, starting from the smallest bit to massive gigabytes and terabytes, reflecting its capacity. The memory hierarchy illustrates how different types of memory are organized based on their speed, cost, and proximity to the CPU, ensuring efficient data access and management within the system.
- Memory Measurements: Standard units used to quantify storage capacity.
- Bit (0,1): The smallest unit of data, representing a binary digit.
- Nibble (4 bits): A group of four bits, half a byte.
- Byte (8 bits): A fundamental unit of digital information, typically representing a single character.
- Larger Units: Kilobyte (KB), Megabyte (MB), Gigabyte (GB), Terabyte (TB), Petabyte (PB), Exabyte (EB), Zettabyte (ZB), Yottabyte (YB), Brontobyte (BB), Geopbyte (GB).
- Parity Bit: An error-detecting code used to check the integrity of data during transmission or storage.
- Used in digital communication, data storage, and computing to detect single-bit errors.
- Computer Memory Types: Categorized by volatility and access speed.
- Primary Memory (Volatile): Loses its data when the power is turned off.
- RAM (Random Access Memory): Allows data to be read and written quickly in any order.
- DRAM (Dynamic RAM): Requires constant refreshing to maintain data.
- SRAM (Static RAM): Faster and more expensive, holds data without refreshing as long as power is supplied.
- Secondary Memory (Non-Volatile): Retains data even when power is off, used for long-term storage.
- Hard Disk: A permanent storage device, also known as a magnetic disc.
- Non-volatile: Data persists after power is removed.
- Uses flash memory and electronic circuits (for SSDs).
- Types: Hard Disk Drive (HDD), Solid State Drive (SSD).
- Types of Interfaces: Parallel Advanced Technology Attachment (PATA), Serial Advanced Technology Attachment (SATA), Small Computer System Interface (SCSI), NVMe (Non-volatile Memory Express).
- Floppy Disk: Thin, flexible magnetic coating discs, also called Floppy Diskette.
- Stores data up to 1.44MB (in most cases).
- Comes in 3 sizes: 8 inches, 5.25 inches, 3.5 inches.
- CD (Compact Disc): An optical disc storage device.
- Stores up to 783 MB of data.
- Uses laser light to read and write data.
- Types of CDs: CD-ROM (Read Only), CD-R (Recordable), CD-RW (Rewritable).
- DVD Drive/Disc: An optical disc, Digital Versatile/Video Disc.
- Storing capacity of 4.7GB to 17GB.
- Diameter: 120mm.
- Blu-Ray Disc (BD): Stores large amounts of data and high-definition videos.
- Provides 25 GB of space for data.
- Diameter: 120mm/12cm/4.75 inches.
- Pen Drive: A portable device, also called a USB Flash Drive.
- Inserted through a USB port for data transfer.
- Storing capacity of 64 MB to 128 GB.
- ROM (Read Only Memory): Non-volatile memory that stores firmware or fixed data.
- MPROM (Masked ROM): Programmed during manufacturing.
- PROM (Programmable ROM): Can be programmed once by the user.
- EPROM (Erasable PROM): Can be erased by ultraviolet light and reprogrammed.
- EEPROM (Electrically Erasable PROM): Can be erased electrically and reprogrammed.
- Flash ROM: A type of EEPROM, commonly used for firmware.
- Memory Hierarchy: A structured arrangement of storage levels based on speed and cost.
- Registers: Fastest memory, directly within the CPU.
- Cache Memory: High-speed memory between CPU and main memory.
- Main Memory: Primary storage (RAM) for active programs and data.
- Magnetic Disk: Hard drives for secondary storage.
- Optical Disk: CDs, DVDs, Blu-Rays for external storage.
- Magnetic Tape: Used for archival storage and backups.
Frequently Asked Questions
What is the primary function of the CPU's Control Unit?
The Control Unit directs operations, instructing memory and the arithmetic logic unit. It manages and coordinates the flow of data and instructions within the CPU, ensuring proper execution of tasks and system synchronization.
How does a computer's clock speed impact its performance?
Clock speed, measured in hertz, determines how many cycles per second the CPU performs. A higher clock speed means more operations can be executed per second, leading to faster overall computer performance and quicker task completion.
What is the main difference between primary and secondary memory?
Primary memory (like RAM) is volatile and faster, used for active data and programs. Secondary memory (like hard drives) is non-volatile and slower, used for long-term storage of programs and data, retaining information even without power.
