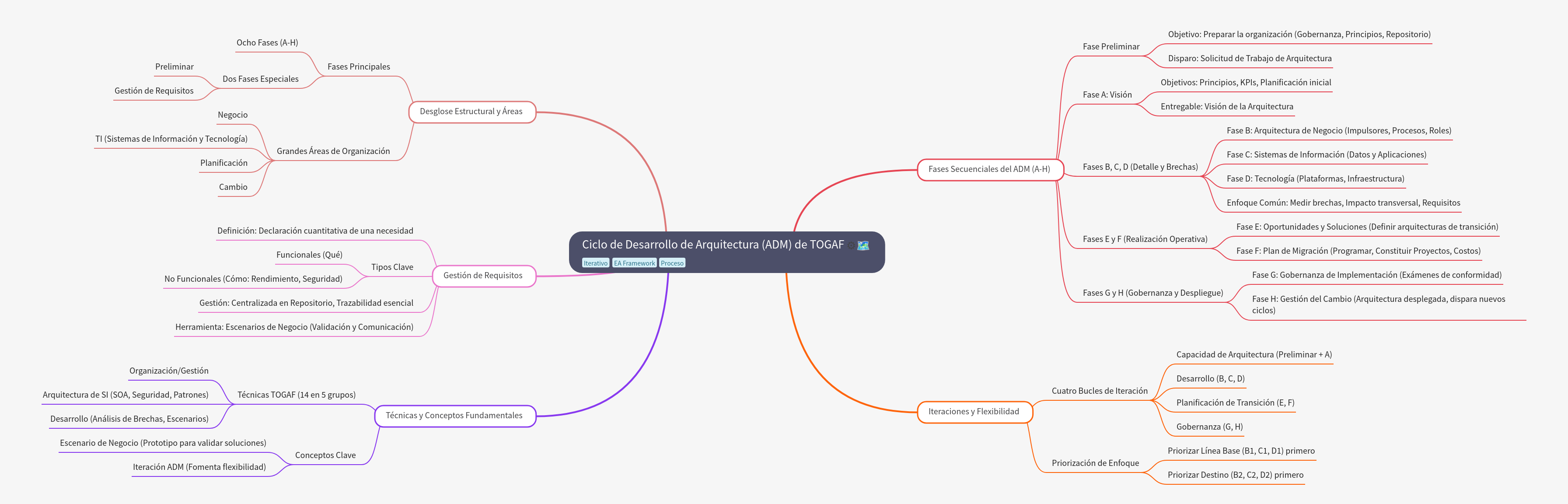

TOGAF Architecture Development Method (ADM) Cycle
The ADM is the core process of the TOGAF framework, providing a structured, iterative approach for developing and managing enterprise architecture. It guides architects through a series of sequential phases, from establishing the architectural vision and defining baseline and target architectures across business, data, application, and technology domains, to planning implementation and governing change.
Key Takeaways
ADM is the iterative core process for developing enterprise architecture using the TOGAF framework.
The cycle includes eight main phases (A-H) plus Preliminary and continuous Requirements Management.
Architecture definition covers Business, Information Systems (Data/Applications), and Technology domains.
Flexibility is achieved through four iterative loops: Capability, Development, Transition, and Governance.
Requirements Management is central, ensuring traceability and alignment throughout all ADM phases.
What is the structural breakdown of the TOGAF ADM?
The TOGAF Architecture Development Method (ADM) is structurally organized around a set of sequential phases and key organizational areas that must be addressed during architecture development. The core process includes eight main phases (A through H) and two special, continuous phases—Preliminary and Requirements Management—which ensure foundational setup and ongoing alignment. Furthermore, the ADM mandates consideration of four major organizational areas: Business, Information Technology (IT), Planning, and Change, ensuring a holistic approach that integrates technical solutions with strategic enterprise transformation.
- Fases Principales: The ADM comprises eight sequential phases (A-H) that guide the architecture project, supplemented by the foundational Preliminary phase and the continuous Requirements Management phase.
- Grandes Áreas de Organización: Architecture development must span Business, IT (covering Information Systems and Technology), strategic Planning, and organizational Change management to ensure comprehensive coverage.
How does the TOGAF ADM sequence the architecture development process?
The ADM follows a logical sequence of phases designed to move systematically from initial organizational preparation to final implementation governance and continuous change management. The cycle begins with the Preliminary Phase, establishing the architecture capability, followed by Phase A (Vision), which defines the scope and objectives. Phases B, C, and D detail the architecture domains (Business, Information Systems, Technology), while Phases E and F focus on transition planning and migration strategy. Finally, Phases G and H ensure implementation governance and manage ongoing organizational change, completing the cycle.
- Preliminary Phase: Focuses on preparing the organization by establishing governance, defining principles, and setting up the architecture repository, triggered by an official Architecture Work Request.
- Phase A (Vision): Establishes the architectural direction by defining key principles and KPIs, culminating in the formal Architecture Vision deliverable.
- Phases B, C, D: These phases detail the specific architectures: Business (drivers, processes, roles), Information Systems (Data and Applications), and Technology (platforms, infrastructure).
- Common Focus (B, C, D): A shared approach across these definition phases involves measuring architectural gaps, assessing cross-functional impact, and refining requirements.
- Phases E and F: Phase E identifies Opportunities and Solutions, defining necessary transition architectures; Phase F creates the Migration Plan, scheduling projects, constituting teams, and estimating costs.
- Phases G and H: Phase G ensures Implementation Governance through conformity examinations; Phase H manages Change, ensuring the deployed architecture remains relevant and triggers new ADM cycles.
Why is Requirements Management crucial in the TOGAF ADM cycle?
Requirements Management is a crucial, central phase that operates continuously throughout the ADM cycle, ensuring all architectural work remains aligned with defined organizational needs and strategic objectives. A requirement is formally defined as a clear, quantitative statement of a specific need, which must be meticulously managed in a central repository to maintain essential traceability across all phases. This management process handles both functional requirements (what the system must achieve) and non-functional requirements (how the system performs, covering aspects like security and performance), often utilizing Business Scenarios as a key tool for validation and stakeholder communication.
- Definition: A requirement is a precise, quantitative declaration of a business or technical need that the architecture must satisfy.
- Key Types: Includes Functional requirements (defining system capabilities) and Non-Functional requirements (defining quality attributes like performance and security).
- Management: Requires centralized control within a repository to ensure essential traceability and consistent application throughout the architecture development.
- Tool: Business Scenarios serve as a vital mechanism for validating proposed solutions and facilitating clear communication among all involved parties.
How does TOGAF ADM incorporate iteration and flexibility into architecture development?
The TOGAF ADM is fundamentally designed to be flexible and iterative, allowing organizations to adapt the architecture development process to dynamic business environments and specific project scopes, rather than following a rigid, one-size-fits-all approach. This flexibility is formalized through four distinct iteration loops, each focusing on a specific segment of the architecture lifecycle: Architecture Capability, Development, Transition Planning, and Governance. Furthermore, the ADM allows for strategic prioritization, enabling architects to choose whether to detail the current Baseline Architecture first (B1, C1, D1) or to focus immediately on defining the desired Target Architecture (B2, C2, D2).
- Four Iteration Loops: These loops structure the iterative nature of the ADM, covering Architecture Capability (Preliminary + A), Development (B, C, D), Transition Planning (E, F), and Governance (G, H).
- Prioritization Focus: Organizations can strategically choose to prioritize the definition of the current Baseline (B1, C1, D1) before the Target, or focus on the Target (B2, C2, D2) first, depending on project needs.
What fundamental techniques and concepts support the TOGAF ADM?
Successful execution of the ADM requires leveraging several fundamental techniques and concepts that provide practical guidance, structure, and validation mechanisms throughout the process. TOGAF specifies 14 techniques, grouped into categories such as Organization/Management, Information Systems Architecture (including Service-Oriented Architecture (SOA), Security, and Patterns), and Development (covering essential activities like Gap Analysis and Scenarios). Core concepts include the Business Scenario, which functions as a prototype for validating proposed solutions against real-world business needs, and the principle of ADM Iteration, which actively promotes flexibility and continuous refinement across the entire architecture lifecycle.
- TOGAF Techniques (14 in 5 groups): These techniques support various aspects, including Organization/Management, SI Architecture (covering SOA, Security, and Patterns), and Development activities like Gap Analysis and using Scenarios.
- Key Concepts: The Business Scenario serves as a critical tool for prototyping and validating solutions, while ADM Iteration is the core principle that fosters necessary flexibility in the development process.
Frequently Asked Questions
What are the four main domains addressed in the ADM phases B, C, and D?
Phases B, C, and D detail the architecture across four major domains: Business, Data, Application, and Technology. This ensures a comprehensive view of the enterprise architecture, moving from strategic drivers to underlying infrastructure.
What is the purpose of the Preliminary Phase in the TOGAF ADM?
The Preliminary Phase prepares the organization for architecture work. Its objective is to establish the necessary governance, define architectural principles, and set up the architecture repository before the main development phases begin.
How does the ADM ensure flexibility in the architecture process?
Flexibility is ensured through the iterative nature of the ADM, structured into four loops (Capability, Development, Transition, Governance). It also allows architects to prioritize either the Baseline or the Target architecture definition first.
