Amazon EC2 Auto Scaling Mechanics Explained
Amazon EC2 Auto Scaling automatically adjusts the number of EC2 instances in response to fluctuating application demand, ensuring high availability and optimizing operational costs. It relies on core components like Auto Scaling Groups, Launch Templates, and CloudWatch alarms to define capacity limits and trigger scaling policies. This mechanism manages both scaling out (adding capacity) and scaling in (removing capacity) seamlessly and efficiently.
Key Takeaways
ASGs define capacity limits and manage the fleet of EC2 instances automatically.
Launch Templates specify the exact configuration for new instances, including AMI and type.
CloudWatch Alarms monitor key metrics, triggering scaling policies when thresholds are breached.
Scaling out adds instances when demand increases, maintaining performance and availability.
Scaling in removes excess instances when demand drops, optimizing resource utilization and costs.

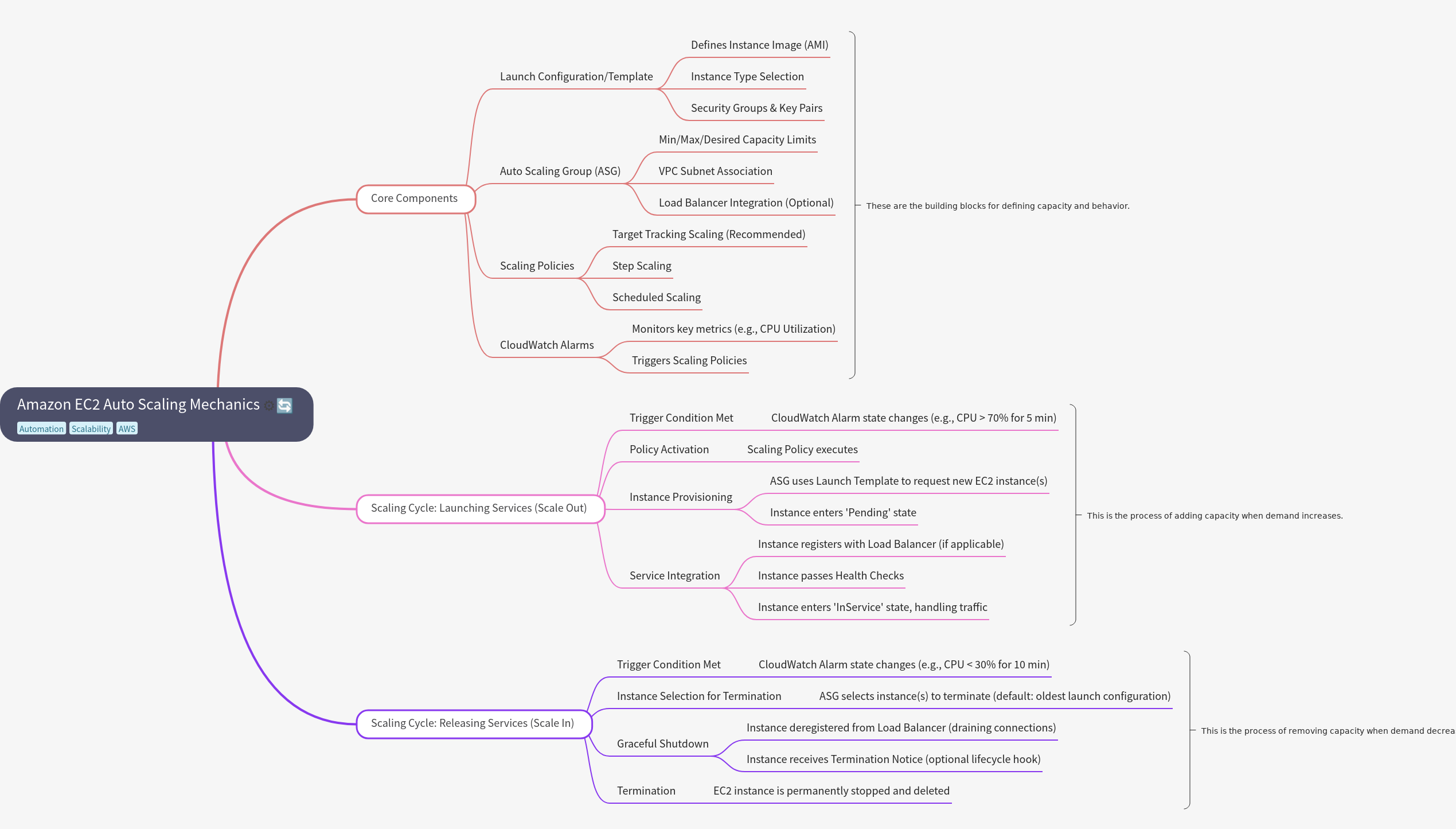

What are the core components of Amazon EC2 Auto Scaling?
The core components of EC2 Auto Scaling define how instances are launched, configured, and managed, ensuring the system maintains the desired capacity and operational configuration. These essential building blocks include the Launch Configuration or Template, which specifies instance details; the Auto Scaling Group (ASG), which manages the fleet size; Scaling Policies, which dictate when and how scaling occurs; and CloudWatch Alarms, which monitor performance metrics to initiate the entire process. These elements work together to provide automated, elastic capacity management.
- Launch Configuration/Template:
- Defines Instance Image (AMI)
- Instance Type Selection
- Security Groups & Key Pairs
- Auto Scaling Group (ASG):
- Min/Max/Desired Capacity Limits
- VPC Subnet Association
- Load Balancer Integration (Optional)
- Scaling Policies:
- Target Tracking Scaling (Recommended)
- Step Scaling
- Scheduled Scaling
- CloudWatch Alarms:
- Monitors key metrics (e.g., CPU Utilization)
- Triggers Scaling Policies
How does EC2 Auto Scaling launch new services (Scale Out)?
The scale-out process, which involves launching new services to handle increased load, begins when a predefined trigger condition is met. This condition is typically signaled by a CloudWatch Alarm indicating high resource utilization, such as CPU exceeding 70% for a set duration. Upon activation, the associated Scaling Policy executes, prompting the Auto Scaling Group (ASG) to provision one or more new EC2 instances using the specified Launch Template. These new instances enter a 'Pending' state before they are fully integrated into the service environment and begin handling traffic.
- Trigger Condition Met:
- CloudWatch Alarm state changes (e.g., CPU > 70% for 5 min)
- Policy Activation:
- Scaling Policy executes
- Instance Provisioning:
- ASG uses Launch Template to request new EC2 instance(s)
- Instance enters 'Pending' state
- Service Integration:
- Instance registers with Load Balancer (if applicable)
- Instance passes Health Checks
- Instance enters 'InService' state, handling traffic
When does EC2 Auto Scaling release services (Scale In)?
EC2 Auto Scaling initiates a scale-in event to reduce capacity and optimize costs when application demand decreases significantly. This process is triggered when a CloudWatch Alarm detects low utilization, such as CPU falling below 30% for an extended period, indicating that the current capacity is excessive. The ASG then selects specific instances for termination, typically prioritizing those based on the oldest launch configuration to manage fleet updates effectively. A graceful shutdown procedure follows, ensuring connections are drained before the instance is permanently stopped and deleted from the environment.
- Trigger Condition Met:
- CloudWatch Alarm state changes (e.g., CPU < 30% for 10 min)
- Instance Selection for Termination:
- ASG selects instance(s) to terminate (default: oldest launch configuration)
- Graceful Shutdown:
- Instance deregistered from Load Balancer (draining connections)
- Instance receives Termination Notice (optional lifecycle hook)
- Termination:
- EC2 instance is permanently stopped and deleted
Frequently Asked Questions
What is the primary role of the Auto Scaling Group (ASG)?
The ASG manages the collection of EC2 instances, defining the minimum, maximum, and desired capacity limits. It ensures the number of running instances stays within these boundaries by initiating scaling actions based on defined policies and metrics.
How does the system decide which instance to terminate during a scale-in event?
The Auto Scaling Group selects instances for termination based on predefined criteria. By default, it targets instances launched using the oldest launch configuration. This strategy helps ensure consistency and facilitates the management of fleet updates and instance lifecycles.
What are the three main types of scaling policies available?
The three main types are Target Tracking Scaling, which maintains a specific metric average; Step Scaling, which adjusts capacity based on the severity of the alarm breach; and Scheduled Scaling, which adjusts capacity based on predictable time patterns.
