OEE Performance Loss Root Causes (5M1E) Explained

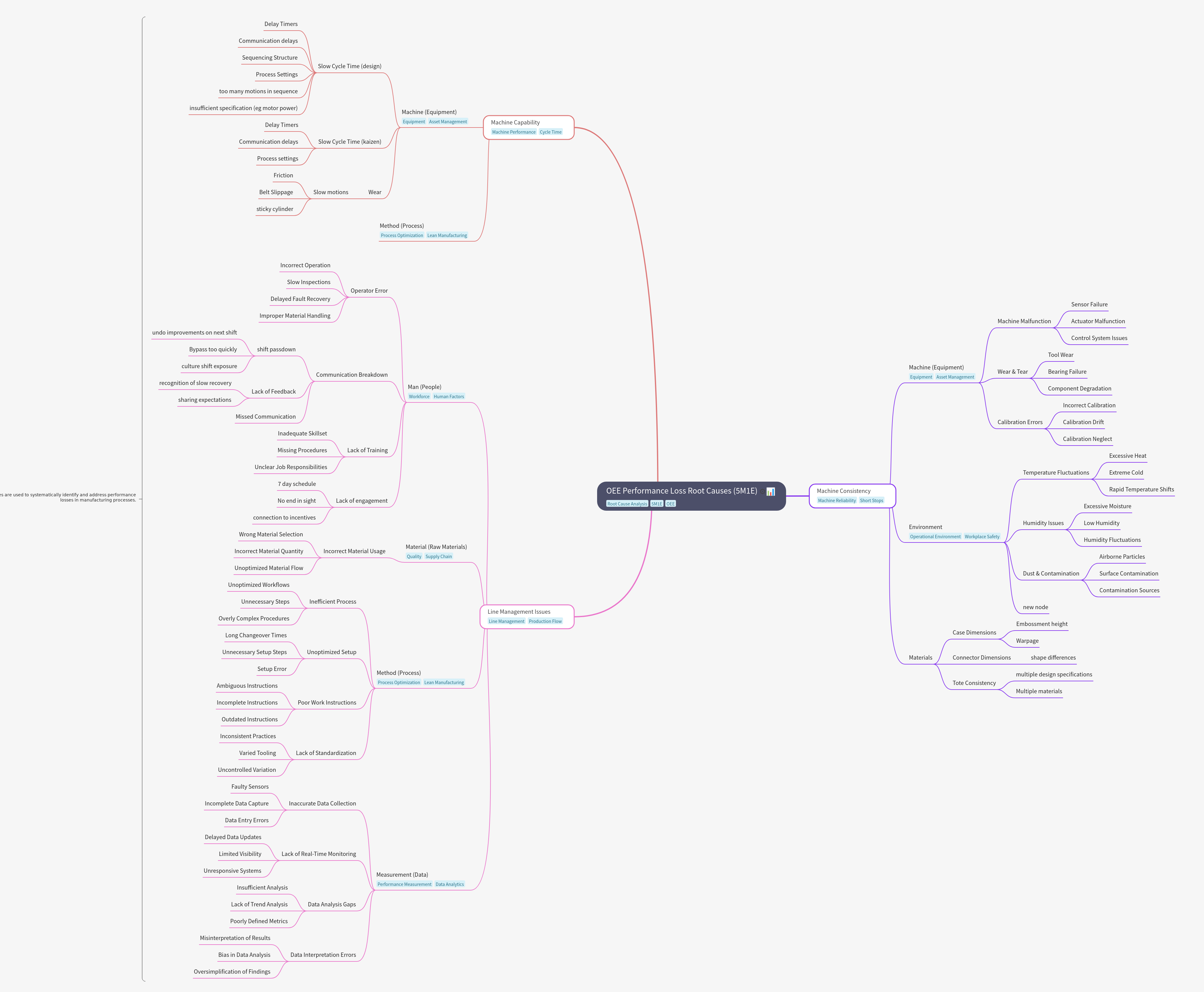

OEE performance losses arise from diverse factors affecting equipment effectiveness. The 5M1E framework—Machine, Method, Material, Man, Measurement, and Environment—systematically identifies these root causes. This structured approach pinpoints issues like slow cycle times, machine malfunctions, operator errors, or material inconsistencies, enabling targeted improvements and boosting overall equipment effectiveness.
Key Takeaways
Systematic root cause analysis using 5M1E improves OEE.
Machine capability and consistency directly impact production efficiency.
Human factors, materials, and processes are key to line management.
Accurate data collection and analysis drive OEE improvements.
How Does Machine Capability Affect OEE Performance?
Machine capability directly influences Overall Equipment Effectiveness (OEE) by setting the inherent limits of production speed and quality. Issues often stem from the machine's design or subsequent operational adjustments. Slow cycle times, whether due to initial design flaws or later operational changes, significantly reduce performance. Design-related slowness can arise from inherent delays in timers, communication, or sequencing, while operational slowness might be due to incorrect process settings. Furthermore, physical wear on components, leading to friction or sticky parts, can degrade machine motion and overall speed, impacting the machine's ability to consistently meet its designed output.
- - Machine (Equipment) related issues: These include slow cycle times, both from original design limitations like delay timers, communication delays, sequencing structure, process settings, excessive motions, or insufficient component specifications (e.g., motor power). Operational slowness, often from kaizen efforts, can also be due to unoptimized delay timers, communication delays, or incorrect process settings. Additionally, physical wear on components, such as friction, belt slippage, or sticky cylinders, can lead to slow motions and reduced performance.
- - Method (Process) related issues: This category addresses inefficiencies in the operational procedures themselves, which can limit the machine's overall capability and contribute to OEE losses.
What Factors Impact Machine Consistency and OEE?
Machine consistency is crucial for stable OEE, as any deviation from expected performance leads to quality losses and downtime. Inconsistencies frequently arise from the machine itself, environmental conditions, or material variations. Machine-related problems include malfunctions like sensor or actuator failures, general wear and tear such as tool wear or bearing failure, and calibration errors that cause incorrect measurements or drift. External environmental factors like temperature extremes, humidity fluctuations, or dust contamination can also disrupt machine operation. Furthermore, inconsistencies in raw materials, such as varying dimensions or material properties, can directly impact machine processing and product quality.
- - Machine (Equipment) issues: These encompass machine malfunctions like sensor or actuator failures and control system issues. They also include wear and tear, such as tool wear, bearing failure, or general component degradation. Calibration errors, whether incorrect initial calibration, calibration drift over time, or neglect of regular calibration, also significantly impact consistency.
- - Environment factors: External conditions play a critical role, including temperature fluctuations (excessive heat, extreme cold, rapid shifts), humidity issues (excessive moisture, low humidity, or general fluctuations), and dust and contamination (airborne particles, surface contamination, and various contamination sources).
- - Materials variations: Inconsistencies in raw materials can cause problems, such as variations in case dimensions (embossment height, warpage), connector dimensions (shape differences), and tote consistency (multiple design specifications or materials).
How Do Line Management Issues Contribute to OEE Losses?
Line management issues significantly contribute to OEE losses by impacting human performance, material flow, process efficiency, and data accuracy. Operator errors, such as incorrect operation or delayed fault recovery, directly lead to downtime and quality defects. Communication breakdowns, especially during shift changes, can negate improvements and cause inconsistencies. Inefficient processes, including unoptimized workflows or overly complex procedures, slow down production. Poor work instructions and a lack of standardization further exacerbate these issues. Additionally, inaccurate data collection, insufficient monitoring, and flawed analysis prevent effective problem-solving and continuous improvement efforts, masking the true root causes of OEE degradation.
- - Man (People) factors: These include operator error (incorrect operation, slow inspections, delayed fault recovery, improper material handling), communication breakdown (issues with shift passdown leading to undoing improvements or bypassing too quickly, lack of feedback regarding slow recovery or sharing expectations, and general missed communication), lack of training (inadequate skillset, missing procedures, unclear job responsibilities), and lack of engagement (due to factors like 7-day schedules, a feeling of 'no end in sight,' or weak connection to incentives).
- - Material (Raw Materials) issues: This primarily involves incorrect material usage, which can stem from wrong material selection, incorrect material quantity, or unoptimized material flow within the production line.
- - Method (Process) inefficiencies: This category covers inefficient processes (unoptimized workflows, unnecessary steps, overly complex procedures), unoptimized setup (long changeover times, unnecessary setup steps, setup errors), poor work instructions (ambiguous, incomplete, or outdated instructions), and a lack of standardization (inconsistent practices, varied tooling, uncontrolled variation).
- - Measurement (Data) problems: These include inaccurate data collection (faulty sensors, incomplete data capture, data entry errors), lack of real-time monitoring (delayed data updates, limited visibility, unresponsive systems), data analysis gaps (insufficient analysis, lack of trend analysis, poorly defined metrics), and data interpretation errors (misinterpretation of results, bias in data analysis, oversimplification of findings).
Frequently Asked Questions
What is the 5M1E framework in OEE analysis?
The 5M1E framework categorizes OEE performance loss root causes into Machine, Method, Material, Man, Measurement, and Environment. It provides a structured approach for identifying and addressing inefficiencies in manufacturing processes.
How do machine issues affect OEE?
Machine issues, including slow cycle times, wear, malfunctions, and calibration errors, directly reduce OEE. These problems lead to decreased availability, performance, and quality, hindering overall production efficiency.
Why are human factors important for OEE improvement?
Human factors like operator error, communication breakdowns, and insufficient training significantly impact OEE. Addressing these through proper training, clear communication, and engagement can prevent downtime and improve operational consistency.
