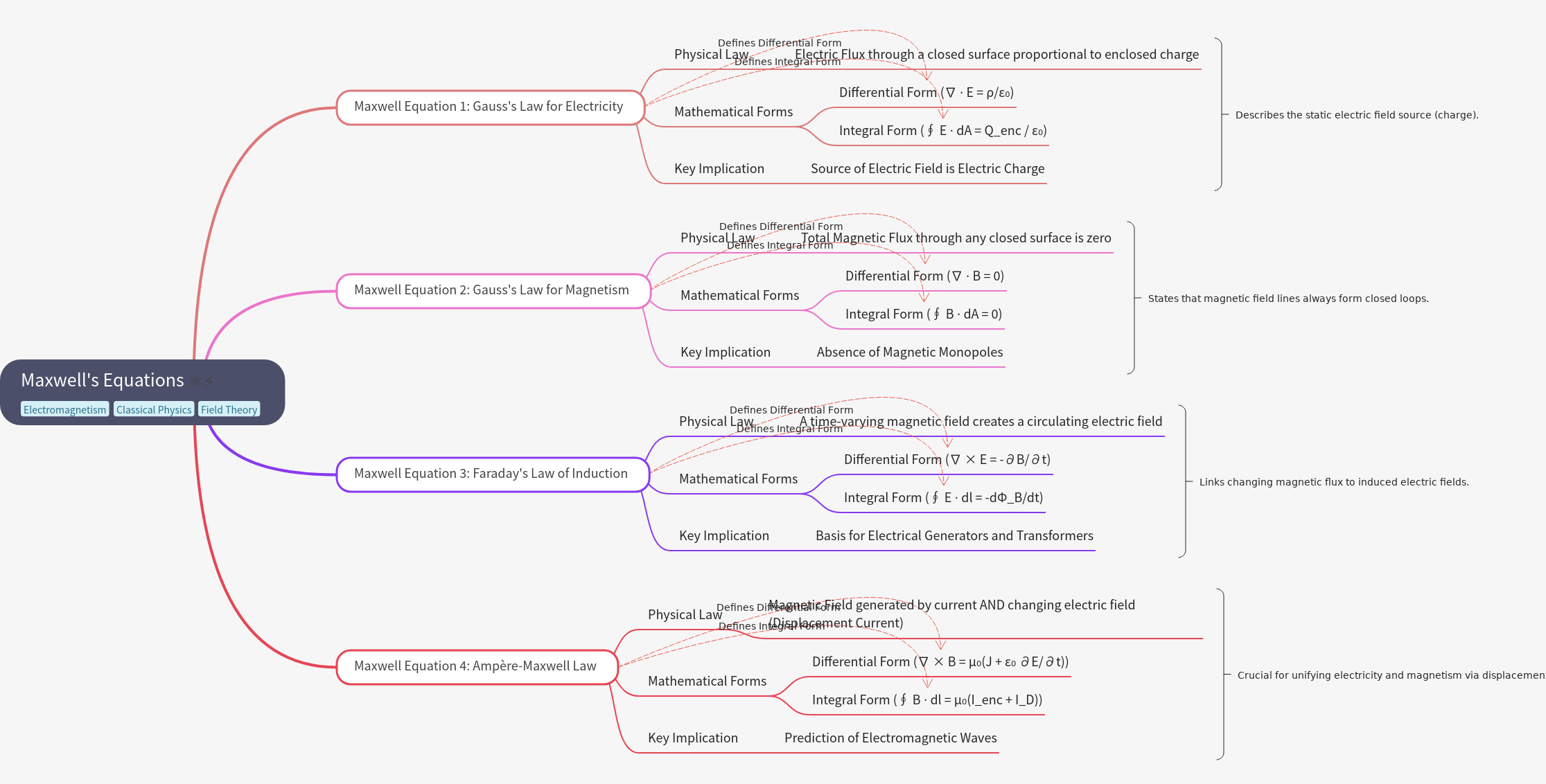

Featured Mind Map

Maxwell's Equations: Unifying Electricity and Magnetism

Maxwell's Equations are a set of four fundamental equations that describe how electric and magnetic fields are generated by charges, currents, and changes in the fields themselves. These equations unify electricity and magnetism into a single force—electromagnetism—and crucially predict the existence and speed of electromagnetic waves, including light.

Key Takeaways

1

Electric fields originate from electric charges, as defined by Gauss's Law for Electricity.

2

Magnetic fields have no isolated sources, confirming the absence of magnetic monopoles.

3

Changing magnetic fields induce electric fields, forming the basis of electrical generation.

4

The Ampère-Maxwell Law shows that light is an electromagnetic wave phenomenon.

Maxwell's Equations: Unifying Electricity and Magnetism

What does Gauss's Law for Electricity tell us about electric fields?

Gauss's Law for Electricity is the foundational equation describing how electric charges create electric fields in space, establishing that electric charge is the sole source of the electric field. This principle states that the total electric flux passing outward through any arbitrary closed surface is directly proportional to the net electric charge enclosed within that volume, divided by the permittivity of free space. This relationship is essential for calculating the electric field strength, particularly in situations involving high symmetry, and confirms that electric field lines must always originate on positive charges and terminate on negative charges, defining the nature of static electricity.

  • Physical Law: The Electric Flux through a closed surface is precisely proportional to the total enclosed charge.
  • Key Implication: The fundamental source of the Electric Field is confirmed to be the Electric Charge.
  • Mathematical Forms:
  • Differential Form: ∇ ⋅ E = ρ/ε₀ (Relates divergence of E-field to charge density)
  • Integral Form: ∮ E ⋅ dA = Q_enc / ε₀ (Relates flux through a surface to enclosed charge)

Why is the total magnetic flux through a closed surface always zero?

Gauss's Law for Magnetism is the magnetic counterpart to the first equation, but it yields a zero result, indicating a crucial difference in the nature of magnetic sources. This law states that the total magnetic flux passing through any closed surface must be zero, which physically means that magnetic field lines are continuous and never diverge from a single point. The most significant implication of this zero flux is the definitive absence of magnetic monopoles—isolated north or south poles—in nature. Magnetic fields always exist as dipoles, where field lines form complete, unbroken loops, reinforcing the symmetry and structure of classical magnetic phenomena.

  • Physical Law: The total Magnetic Flux through any closed surface is consistently zero.
  • Key Implication: This law fundamentally confirms the Absence of Magnetic Monopoles in the universe.
  • Mathematical Forms:
  • Differential Form: ∇ ⋅ B = 0 (States the divergence of the B-field is zero)
  • Integral Form: ∮ B ⋅ dA = 0 (Shows net flux through a closed surface is zero)

How does Faraday's Law of Induction relate changing magnetic fields to electric fields?

Faraday's Law of Induction describes the dynamic relationship where a time-varying magnetic field actively generates a circulating electric field, a process known as electromagnetic induction. This law is central to the operation of nearly all modern electrical technology, quantifying how a changing magnetic flux induces an electromotive force (EMF) in a circuit. The induced electric field is non-conservative, meaning it does work on charges moving around a closed loop. This principle is the essential physical mechanism that underpins the functionality of electrical generators, which convert mechanical motion into electricity, and transformers, which efficiently manage AC voltage levels.

  • Physical Law: A time-varying magnetic field dynamically creates a circulating electric field.
  • Key Implication: This principle forms the essential Basis for Electrical Generators and Transformers.
  • Mathematical Forms:
  • Differential Form: ∇ × E = -∂B/∂t (Relates curl of E-field to the rate of change of B-field)
  • Integral Form: ∮ E ⋅ dl = -dΦ_B/dt (Relates induced EMF to the rate of change of magnetic flux)

What is the significance of the Ampère-Maxwell Law in unifying electromagnetism?

The Ampère-Maxwell Law is the culmination of classical electromagnetism, unifying the generation of magnetic fields by both electric currents and changing electric fields. Maxwell introduced the crucial displacement current term (ε₀ ∂E/∂t) to the original Ampère's Law, which was necessary to maintain charge conservation and ensure mathematical consistency. This modification established a complete symmetry between electric and magnetic phenomena: just as a changing magnetic field creates an electric field (Faraday's Law), a changing electric field creates a magnetic field. This reciprocal relationship is what allows for the self-propagation and Prediction of Electromagnetic Waves, confirming that light is fundamentally an electromagnetic phenomenon.

  • Physical Law: Magnetic Field is generated by both electric current and a changing electric field (Displacement Current).
  • Key Implication: This completed law enables the profound Prediction of Electromagnetic Waves.
  • Mathematical Forms:
  • Differential Form: ∇ × B = μ₀(J + ε₀ ∂E/∂t) (Relates curl of B-field to current density and changing E-field)
  • Integral Form: ∮ B ⋅ dl = μ₀(I_enc + I_D) (Relates line integral of B-field to enclosed current and displacement current)

Frequently Asked Questions

Q

What is the primary difference between Gauss's Law for Electricity and Gauss's Law for Magnetism?

A

Gauss's Law for Electricity shows that electric fields originate from charges. Gauss's Law for Magnetism states that magnetic fields have no starting or ending points, confirming the non-existence of isolated magnetic monopoles.

Q

Which of Maxwell's equations is responsible for predicting electromagnetic waves?

A

The Ampère-Maxwell Law is responsible. By including the displacement current term, Maxwell showed that changing electric fields create magnetic fields, which, combined with Faraday's Law, allows self-sustaining wave propagation.

Q

What practical technology relies directly on Faraday's Law of Induction?

A

Faraday's Law is the basis for electrical generators and transformers. It describes how a changing magnetic flux induces an electric field, which is the mechanism used to convert mechanical energy into usable electrical power.
