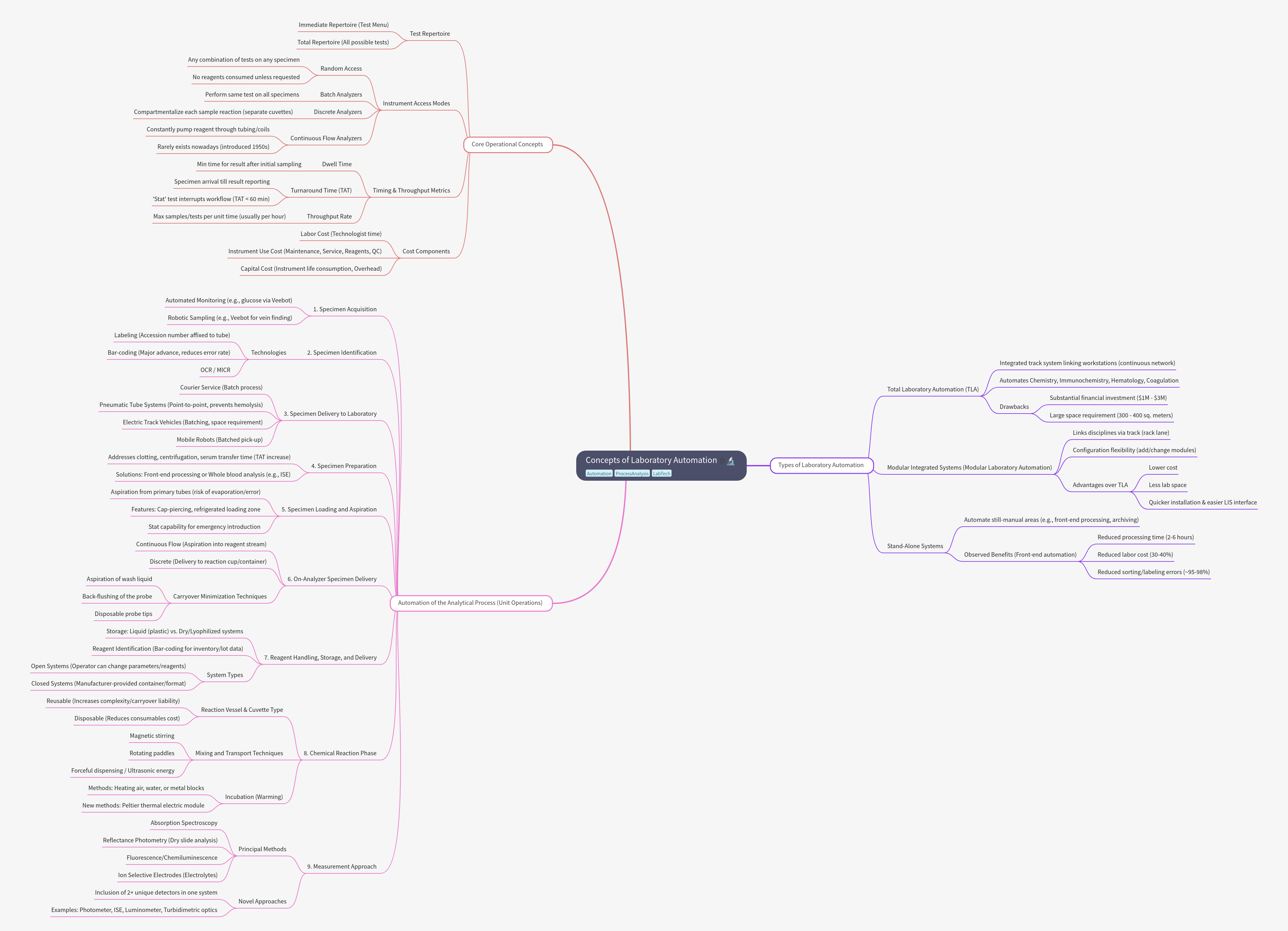

Concepts of Laboratory Automation
Laboratory automation involves integrating instruments and systems to streamline testing workflows, reducing manual labor and errors. Key concepts include defining test repertoires, understanding instrument access modes like random access and batch analysis, and optimizing timing metrics such as Turnaround Time and Throughput Rate across the analytical process.
Key Takeaways
Automation systems range from costly Total Laboratory Automation (TLA) to flexible Modular Integrated Systems.
Operational efficiency is measured by Dwell Time, Turnaround Time (TAT), and maximum Throughput Rate.
Instrument access modes include Random Access (flexible testing) and Batch Analyzers (single test per run).
The analytical process involves nine automated unit operations, from specimen acquisition to final measurement.
What are the core operational concepts defining laboratory automation efficiency?
Core operational concepts define how automated systems function and measure performance, focusing on the scope of testing, how instruments handle samples, and the speed of result delivery. Understanding the test repertoire—both immediate and total—is crucial for system selection. Furthermore, efficiency relies heavily on timing metrics like Turnaround Time (TAT) and Dwell Time, alongside a clear analysis of the three primary cost components: labor, instrument use, and capital investment. These concepts provide the framework for evaluating the effectiveness and economic viability of any automated laboratory setup.
- Test Repertoire: Distinguishes between the Immediate Repertoire (the current test menu) and the Total Repertoire (all possible tests the instrument can perform).
- Instrument Access Modes: Includes Random Access (any test combination on any specimen, no wasted reagents), Batch Analyzers (perform the same test on all specimens), Discrete Analyzers (compartmentalize each reaction), and Continuous Flow Analyzers (rarely used today).
- Timing & Throughput Metrics: Dwell Time is the minimum time for a result after initial sampling. Turnaround Time (TAT) spans specimen arrival to result reporting, where 'Stat' tests require TAT under 60 minutes. Throughput Rate is the maximum samples/tests per unit time.
- Cost Components: Labor Cost accounts for technologist time. Instrument Use Cost covers maintenance, service, reagents, and quality control (QC). Capital Cost relates to instrument life consumption and overhead expenses.
What are the different types of laboratory automation systems available?
Laboratory automation systems are categorized primarily by their scale, integration level, and cost, ranging from fully integrated track systems to flexible modular setups and stand-alone units. Total Laboratory Automation (TLA) offers continuous networking across multiple disciplines but requires significant financial and spatial investment. Modular Integrated Systems provide a more flexible, lower-cost alternative by linking disciplines via track lanes, allowing for easier configuration changes. Stand-alone systems focus on automating specific manual areas, such as front-end processing, yielding benefits like reduced processing time and significant error reduction.
- Total Laboratory Automation (TLA): Characterized by an integrated track system that links workstations into a continuous network, automating disciplines like Chemistry, Immunochemistry, Hematology, and Coagulation.
- Modular Integrated Systems: Links various disciplines via a track or rack lane, offering configuration flexibility to add or change modules. Advantages include lower cost, less required lab space, quicker installation, and easier LIS interface.
- Stand-Alone Systems: Used to automate still-manual areas, such as front-end processing and archiving. Observed benefits include reduced processing time (2-6 hours), reduced labor cost (30-40%), and reduced sorting/labeling errors (95-98%).
How is the analytical process automated across its nine unit operations?
The analytical process is systematically automated through nine distinct unit operations, starting with specimen acquisition and concluding with the final measurement. Automation aims to minimize manual intervention and reduce errors at every stage. Key advancements include robotic sampling for acquisition, bar-coding for identification, and various transport methods like pneumatic tubes for delivery. Preparation steps address issues like clotting, while on-analyzer delivery focuses on minimizing carryover. The process culminates in the chemical reaction phase and the final measurement, utilizing diverse technologies such as spectroscopy, photometry, and ion-selective electrodes.
- Specimen Acquisition: Involves automated monitoring (e.g., glucose testing) and robotic sampling (e.g., Veebot for vein finding) to improve initial collection.
- Specimen Identification: Uses technologies such as labeling (affixing accession numbers), bar-coding (a major advance reducing error rate), and optical/magnetic character recognition (OCR/MICR).
- Specimen Delivery to Laboratory: Methods include courier service (batch), pneumatic tube systems (point-to-point, prevents hemolysis), electric track vehicles, and mobile robots (batched pick-up).
- Specimen Preparation: Addresses critical steps like clotting and centrifugation, which increase Turnaround Time. Solutions include front-end processing or whole blood analysis (e.g., ISE).
- Specimen Loading and Aspiration: Features include aspiration from primary tubes, cap-piercing, refrigerated loading zones, and dedicated Stat capability for emergency introduction.
- On-Analyzer Specimen Delivery: Can be continuous flow or discrete delivery. Carryover is minimized via wash liquid aspiration, probe back-flushing, or disposable tips.
- Reagent Handling, Storage, and Delivery: Storage options include liquid versus dry/lyophilized systems. Identification uses bar-coding. Systems are classified as open (operator changes parameters) or closed (manufacturer-provided format).
- Chemical Reaction Phase: Reaction vessels are reusable or disposable. Mixing uses magnetic stirring, rotating paddles, or forceful dispensing. Incubation uses heated air, water, metal blocks, or Peltier modules.
- Measurement Approach: Principal methods include Absorption Spectroscopy, Reflectance Photometry, Fluorescence/Chemiluminescence, and Ion Selective Electrodes. Novel approaches combine multiple unique detectors (Photometer, ISE, Luminometer, Turbidimetric optics).
Frequently Asked Questions
What is the difference between Immediate Repertoire and Total Repertoire?
Immediate Repertoire, or the Test Menu, refers to the tests currently available on the instrument. Total Repertoire includes all possible tests the instrument is capable of performing, even if not currently configured or requested by the laboratory.
What are the main drawbacks of Total Laboratory Automation (TLA)?
TLA requires a substantial financial investment, typically ranging from $1 million to $3 million. It also demands a large physical space requirement, often needing 300 to 400 square meters for installation and operation.
How do automated systems minimize sample carryover during analysis?
Automated systems minimize carryover using several techniques. These include aspirating wash liquid between samples, back-flushing the probe tip, and utilizing disposable probe tips for critical or high-risk samples to ensure accuracy.
