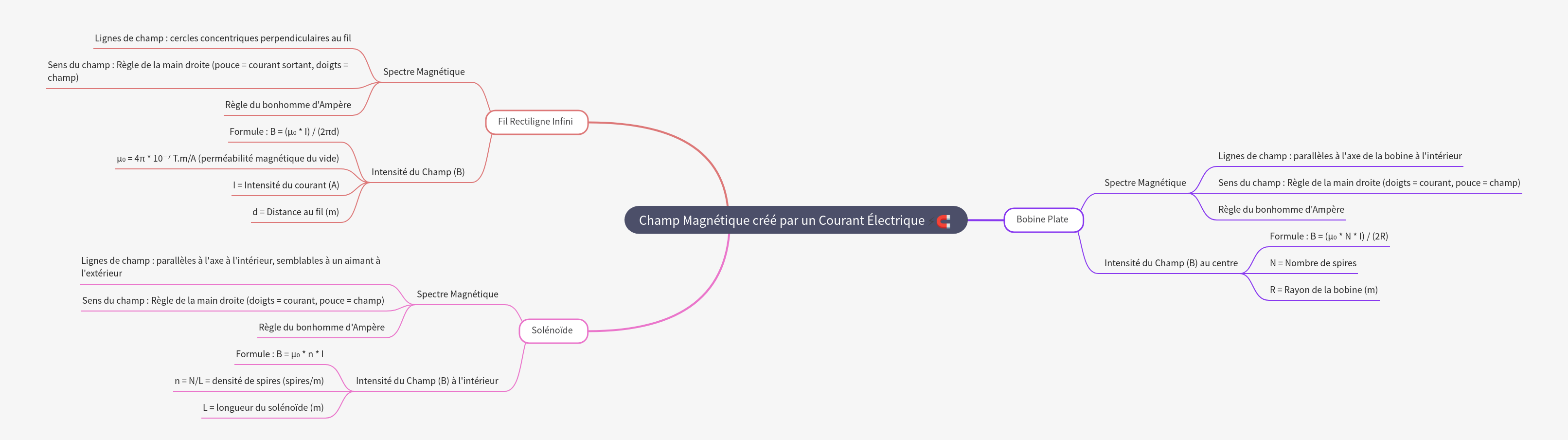

Magnetic Fields from Electric Currents
Electric currents inherently generate magnetic fields, a fundamental principle of electromagnetism. The field's pattern and strength depend on the conductor's shape, like straight wires, flat coils, or solenoids. Understanding these configurations involves specific rules for field direction and formulas for calculating intensity, crucial for practical applications in physics and engineering.
Key Takeaways
Straight wires create concentric circular magnetic fields.
Flat coils produce uniform fields primarily at their center.
Solenoids generate strong, uniform internal magnetic fields.
Right-hand rules determine magnetic field direction.
Field intensity depends on current, distance, and conductor geometry.
How does an infinite straight wire generate a magnetic field?
An infinite straight wire carrying an electric current produces a magnetic field that forms perfect concentric circles around the wire, with the wire itself as the central axis. These magnetic field lines are always perpendicular to the wire, indicating the precise direction of the magnetic force at any point in the surrounding space. To determine the specific direction of this field, one applies the right-hand rule: if your right thumb points in the direction of the conventional current flow, your fingers will naturally curl in the precise direction of the magnetic field lines. Ampere's Man Rule offers an intuitive alternative visualization. The strength of this magnetic field, represented as B, predictably diminishes as the perpendicular distance from the wire increases, adhering to a well-defined inverse mathematical relationship. This foundational understanding is critical for analyzing basic electrical circuits and comprehending broader electromagnetic principles.
- Field lines: Concentric circles that are always perpendicular to the straight wire, clearly illustrating the magnetic field's path and its symmetrical distribution around the conductor.
- Field direction: Determined by the Right-hand rule, where the thumb aligns with the current's direction, and the curled fingers show the magnetic field's precise orientation around the wire.
- Ampere's Man Rule: An intuitive alternative method for visualizing the magnetic field's direction, imagining a "man" swimming with the current and facing the field.
- Formula: B = (μ₀ * I) / (2πd), which quantitatively expresses the magnetic field strength, showing its dependence on current and distance.
- μ₀ = 4π * 10⁻⁷ T.m/A: Represents the magnetic permeability of vacuum, a fundamental physical constant indicating how easily a magnetic field can be established in a vacuum.
- I = Current Intensity (A): The magnitude of the electric current flowing through the wire, measured in Amperes, directly proportional to the field strength.
- d = Distance from wire (m): The perpendicular distance from the point of interest to the center of the wire, measured in meters, inversely affecting field strength.
What is the magnetic field produced by a flat coil?
A flat coil, also known as a circular loop, carrying an electric current generates a distinctive magnetic field, particularly concentrated and uniform along its central axis. Within the coil's interior, especially near its center, the magnetic field lines are notably parallel to the coil's axis, creating a region of relatively consistent magnetic flux. Conversely, outside the coil, the field lines spread out and curve, exhibiting a pattern that closely resembles the magnetic field produced by a short bar magnet, complete with identifiable north and south poles. The direction of this magnetic field is effectively determined by applying a specific variation of the right-hand rule: if your fingers curl in the direction of the current flowing through the coil, your thumb will point in the direction of the magnetic field along the axis. Ampere's Man Rule can also be applied for conceptual understanding.
- Field lines: Predominantly parallel to the coil's axis within its interior, indicating a relatively uniform magnetic field, especially near the center of the coil.
- Field direction: Established by the Right-hand rule, where curled fingers follow the current's path around the coil, and the thumb indicates the axial magnetic field direction.
- Ampere's Man Rule: Provides another intuitive way to understand the field's orientation, particularly useful for visualizing the magnetic poles created by the coil.
- Formula: B = (μ₀ * N * I) / (2R), used to calculate the magnetic field strength precisely at the coil's center, highlighting key influencing factors.
- N = Number of turns: The total count of wire loops forming the coil, directly influencing the magnetic field strength generated, as more turns mean a stronger field.
- R = Coil Radius (m): The radius of the circular coil, measured in meters, which inversely affects the magnetic field's concentration at the center.
How does a solenoid create a magnetic field?
A solenoid, essentially a long, tightly wound helical coil of wire, produces a magnetic field that is remarkably uniform and strong throughout its interior. This characteristic makes solenoids highly valuable in various technological applications requiring controlled magnetic environments. Inside a sufficiently long solenoid, the magnetic field lines are almost perfectly parallel to its central axis, signifying a consistent and predictable magnetic flux. Outside the solenoid, the magnetic field lines diverge and curve, creating a pattern that closely mimics the field of a permanent bar magnet, complete with distinct north and south poles at its ends. The direction of the magnetic field within a solenoid is consistently determined using the right-hand rule: if your fingers curl in the direction of the current flowing through the coil windings, your thumb will point towards the magnetic north pole of the solenoid, indicating the field's direction.
- Field lines: Parallel to the axis within the interior, ensuring a strong and uniform magnetic field; outside, they resemble a bar magnet's field, showing distinct poles.
- Field direction: Determined by the Right-hand rule, where curled fingers follow the current's flow through the windings, and the thumb points along the axial magnetic field.
- Ampere's Man Rule: An additional conceptual tool for understanding the field's orientation and the resulting polarity of the solenoid.
- Formula: B = μ₀ * n * I, which calculates the magnetic field strength within the solenoid's uniform region, emphasizing the role of turns density.
- n = N/L = turns density (turns/m): Represents the number of turns per unit length of the solenoid, a crucial factor determining the magnetic field's intensity.
- L = solenoid length (m): The total length of the solenoid, measured in meters, which is used in conjunction with the number of turns to calculate the turns density.
Frequently Asked Questions
What is the right-hand rule for magnetic fields?
The right-hand rule helps determine the direction of a magnetic field. For a straight wire, point your thumb in the current's direction, and your fingers curl in the field's direction. For coils/solenoids, curl fingers with current, thumb points to field direction.
How does the magnetic field strength change with distance from a straight wire?
For a straight wire, the magnetic field strength decreases inversely with the distance from the wire. This means as you move further away, the field becomes weaker proportionally to the increase in distance.
What is the primary difference between a flat coil and a solenoid's magnetic field?
A flat coil produces a relatively uniform magnetic field only at its center, while a solenoid generates a strong, nearly uniform magnetic field throughout its interior, resembling a bar magnet.
